PRÜFTECHNIK VIBSCANNER 2 User Manual

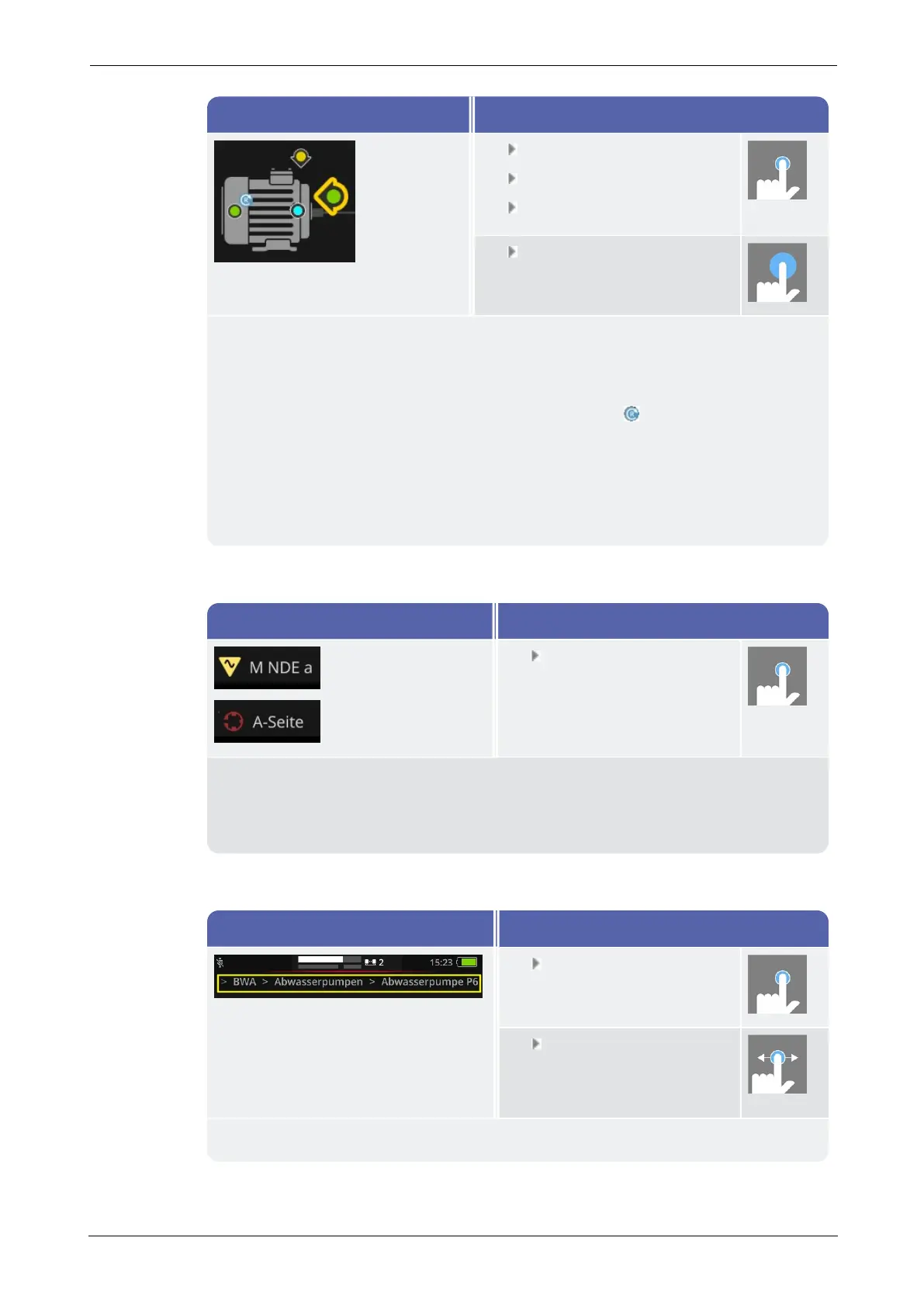

2: Measurement location icon Operation
Select measurement location
Start measurement
Stop measurement
Open context menu
o
Visualization of the measurement location position as well as the axis on the ma-
chine.
o
Active measurement location is marked yellow and presented in enlarged view.
o
The reference measurement location is marked with .
o
Optional: The color in the measurement location icon indicates the status of the
last measurement:
blue = OK, green = prewarning, yellow = warning, red = alarm.
o
Optional: Overall status of the machine train as smiley icon
3: Measurement location info Operation
Open measurement loc-
ation information
o
Sub-menu with information about installation location, sensor, events.
o
Icon indicates the measurement type and/or sensor type, e.g., vibration,
VIBCODE, etc.
4: Navigation path Operation
Navigate to a certain ele-
ment in the path.
Move non-visible path ele-
ments into the display
field.
o
Display and navigation element in Route mode.
VIBSCANNER 2 37
3 - Operation
