Руководство пользователя
6. RAID Setting Instructions 150
www.qtech.ru

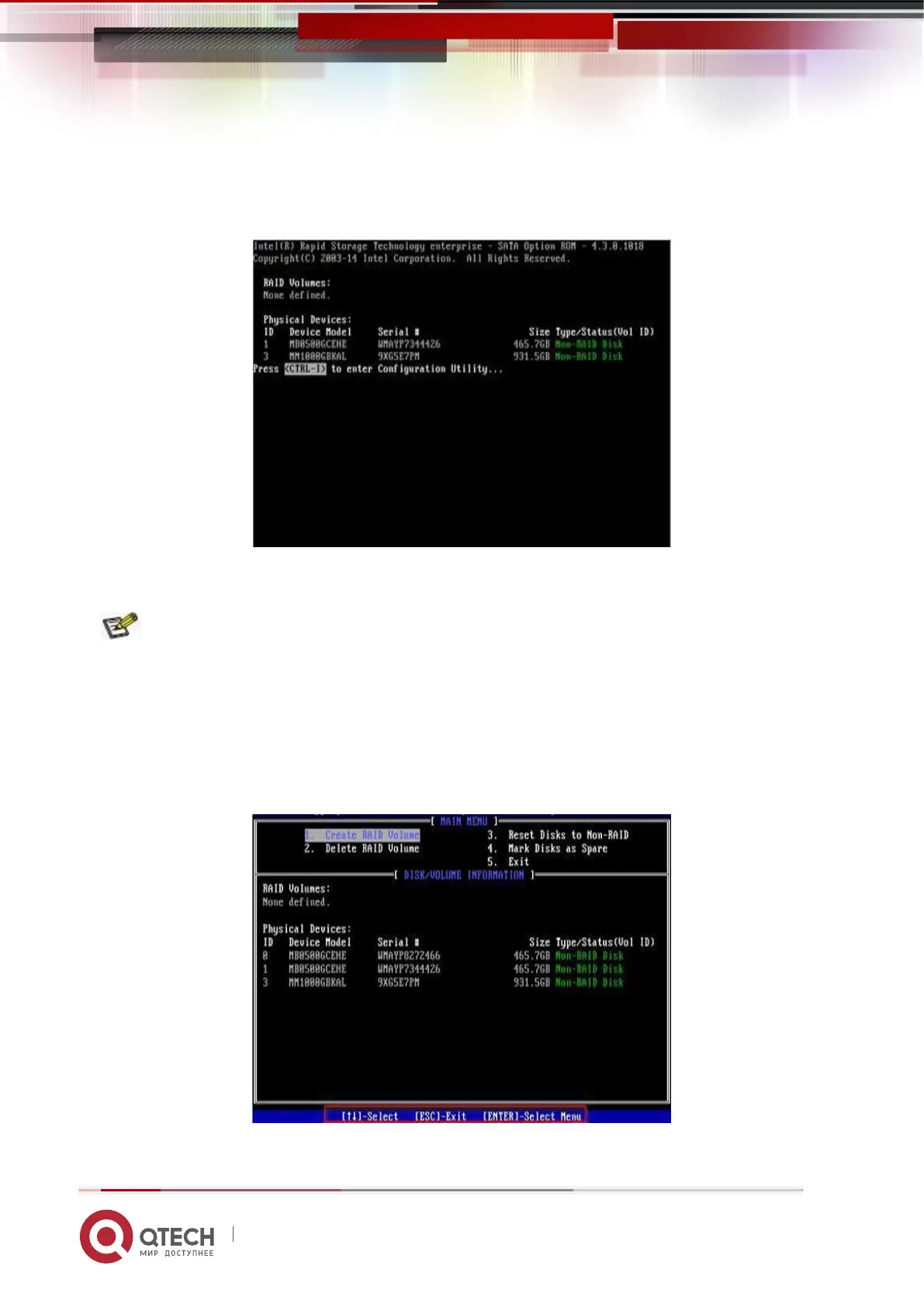

1. Power on or restart the server. After the interface shown in Figure 6-15 appears
during BIOS startup, press Ctrl+I.
Figure 6-15 BIOS startup interface
Figure 6-15
If the working mode of both sSATA and SATA controllers is set to RAID, the
prompt "Press <CTRL-I> to enter Configuration Utility" will appear twice during the
BIOS startup process, corresponding to sSATA and SATA controllers in turn. Please
configure RAID according to the configuration. Select the controller for the desired disk.
2. Enter the RSTe configuration interface shown in Figure 6-16 (see Table 1-29 for
interface description). Please refer to the key operation prompts on the lower border
of the interface to navigate and modify settings in the interface.
Figure 6-16 RSTe configuration interface
Figure 6-16
