Руководство пользователя
6. RAID Setting Instructions 162
www.qtech.ru

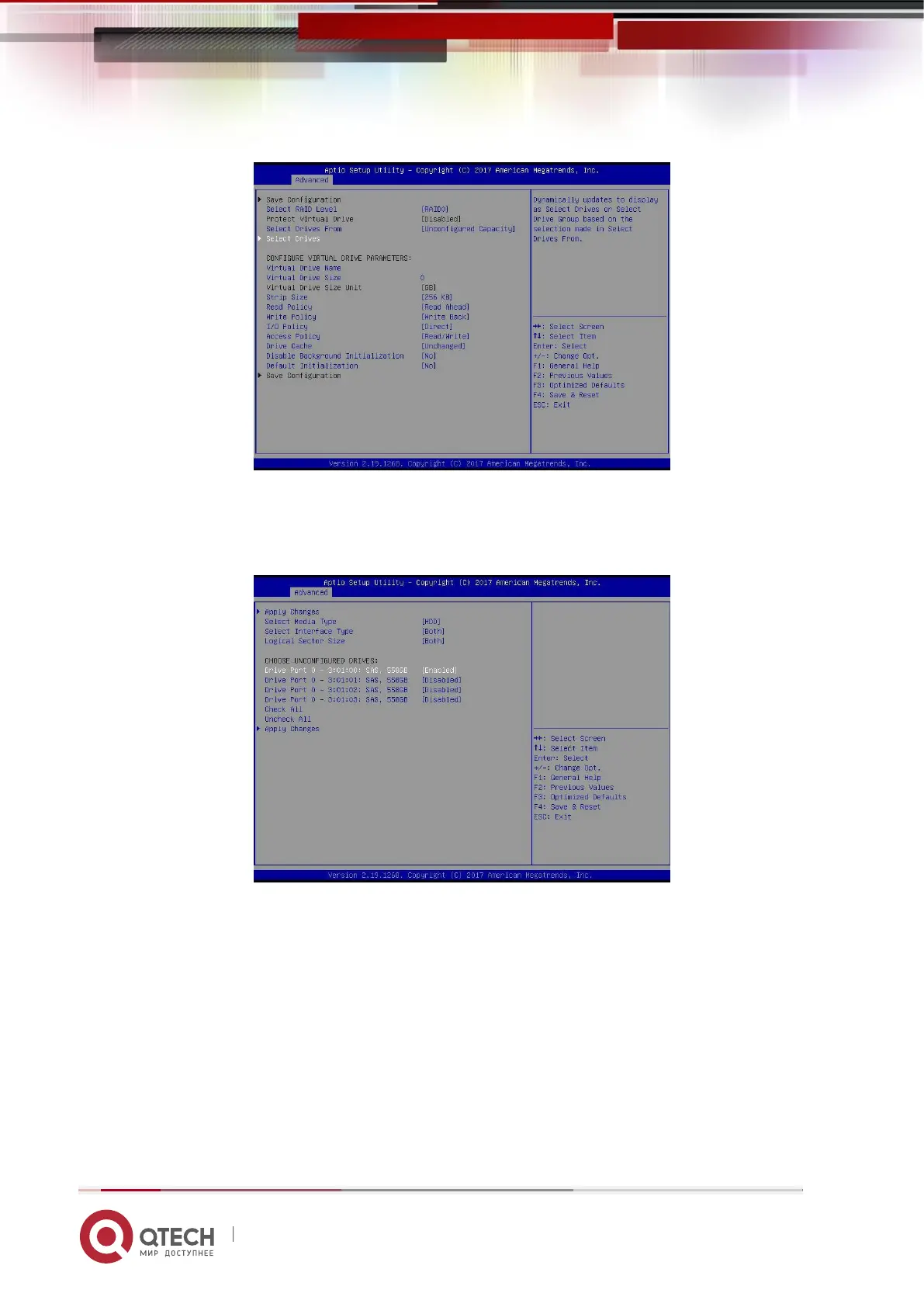

Figure 6-35
6. Enter the interface shown in Figure 6-36, select the disk to be used to configure
RAID, [Enabled] means selected, then select Apply Changes, and press Enter. If
the status of the disk is JBOD or Unconfigured Bad, it cannot be selected.
Figure 6- 36
7. Enter the interface shown in Figure 6-37, make corresponding settings (for
parameter descriptions, see Table 1-32), then select Save Configuration, and press
Enter.
Figure 6-37 Set RAID parameters
