Руководство пользователя
7. IPMI Rapid Deployment 217
www.qtech.ru

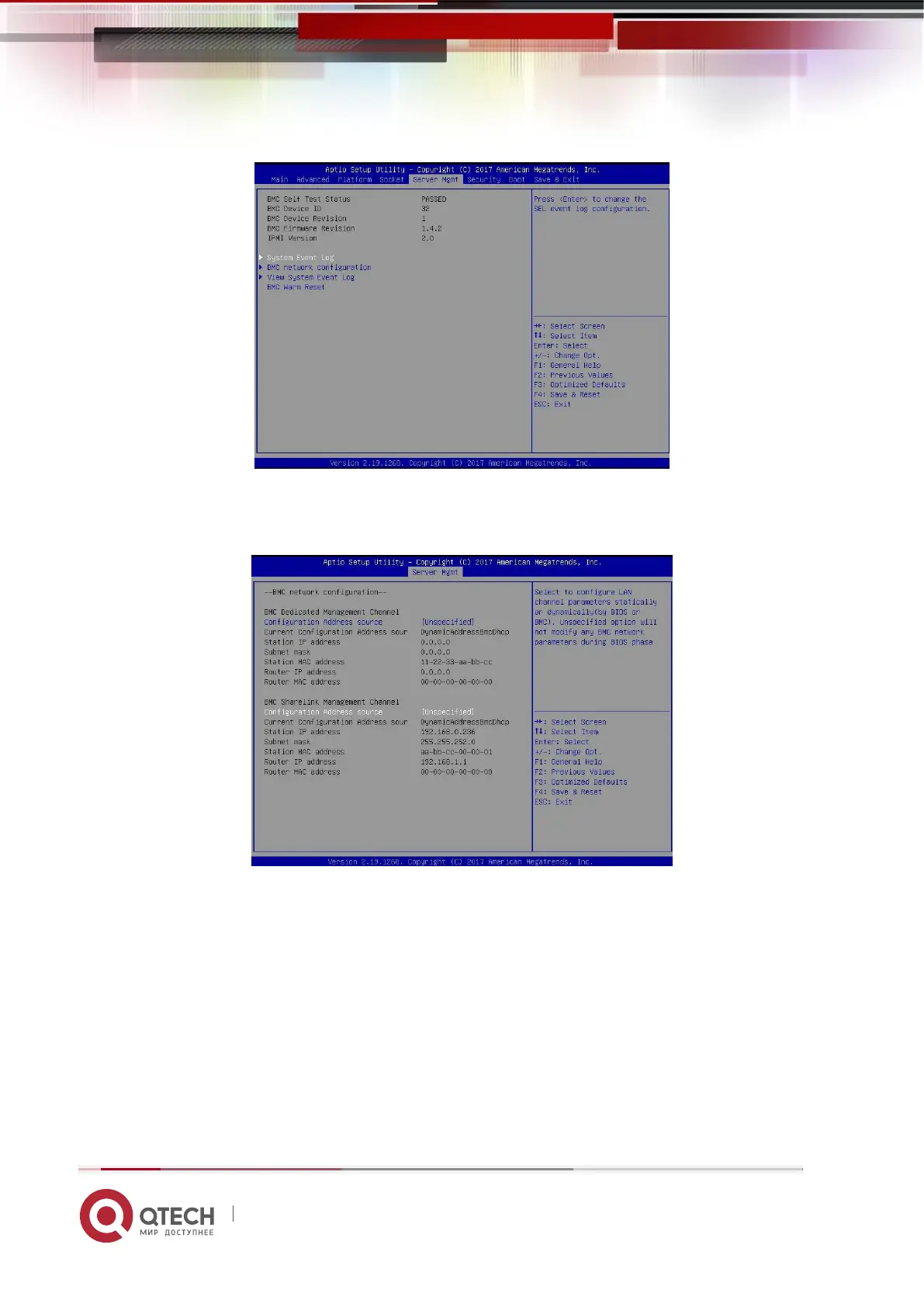

Figure 7-4 Server Mgmt interface
After entering this interface, enter the BMC network configuration option through the
keyboard, and you will enter the following interface, as shown in Figure 7-5.
Figure 7-5 BMC network configuration option interface
On this page, you can see two configurable network ports, one is Dedicated dedicated
network port, and the other is Sharelink shared network port. Take the shared network
port as an example here. If you connect a dedicated network port, the setting method is
the same as the shared network port. Switch to the Configuration Address Source
option and press Enter to set the network mode of changing the network port, as shown
in Figure 7-6.
