RADWIN2000D+UserManual Release3.6.00 8‐4

ThroughputChecking Chapter8

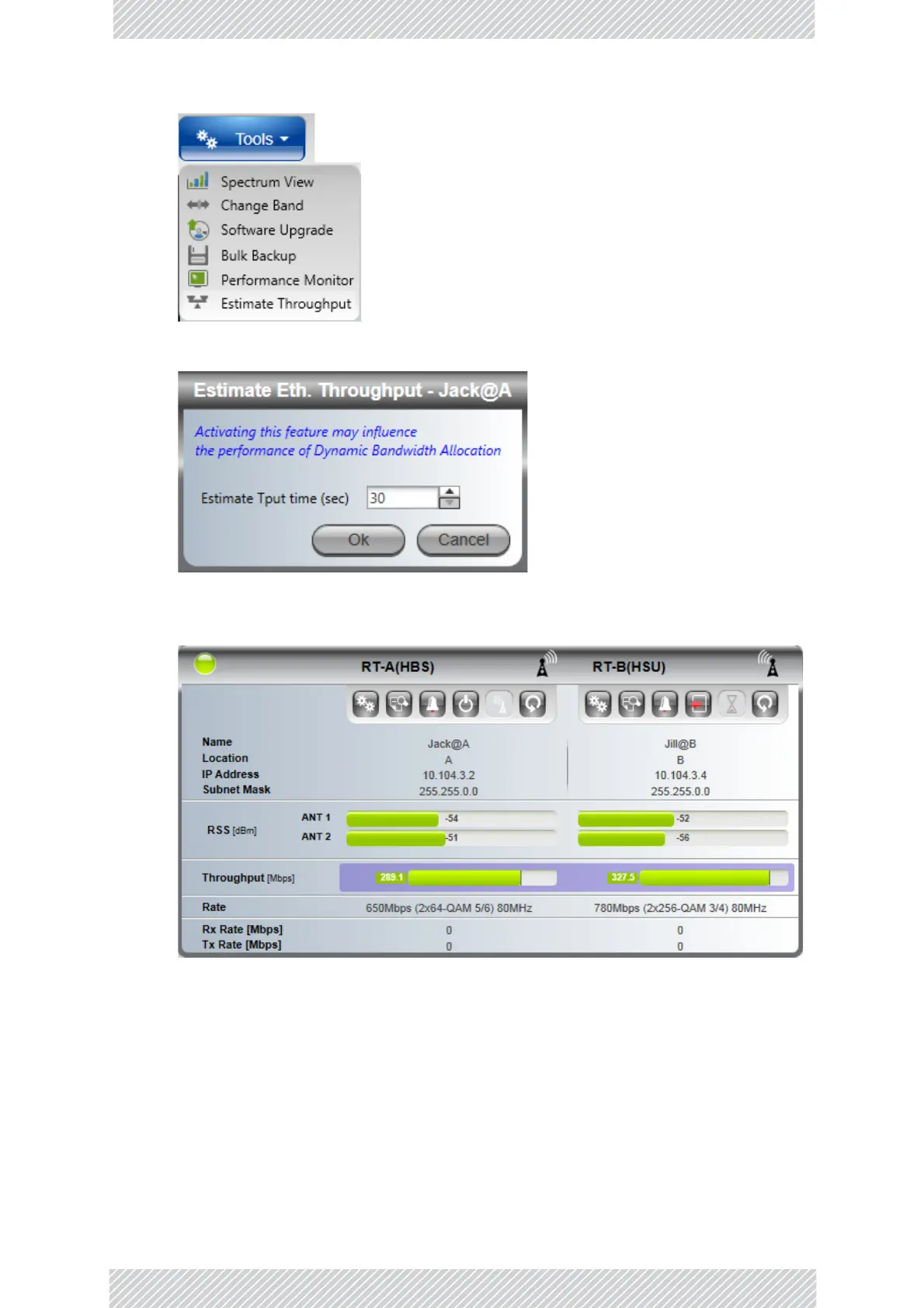

2.Youareaskedtoenterthetestingperiod:

3.Ent ertherequiredtimeandclickOKtocontinue.TheEthernetservicesareachanges

appearanceandtheestimatedthroughputisdisplayed:

Attheendof30seconds,thedisplayrevertstonormal.
