RADWIN2000D+UserManual Release3.6.00 19‐10

RunningtheLinkBudgetCalculator Chapter19

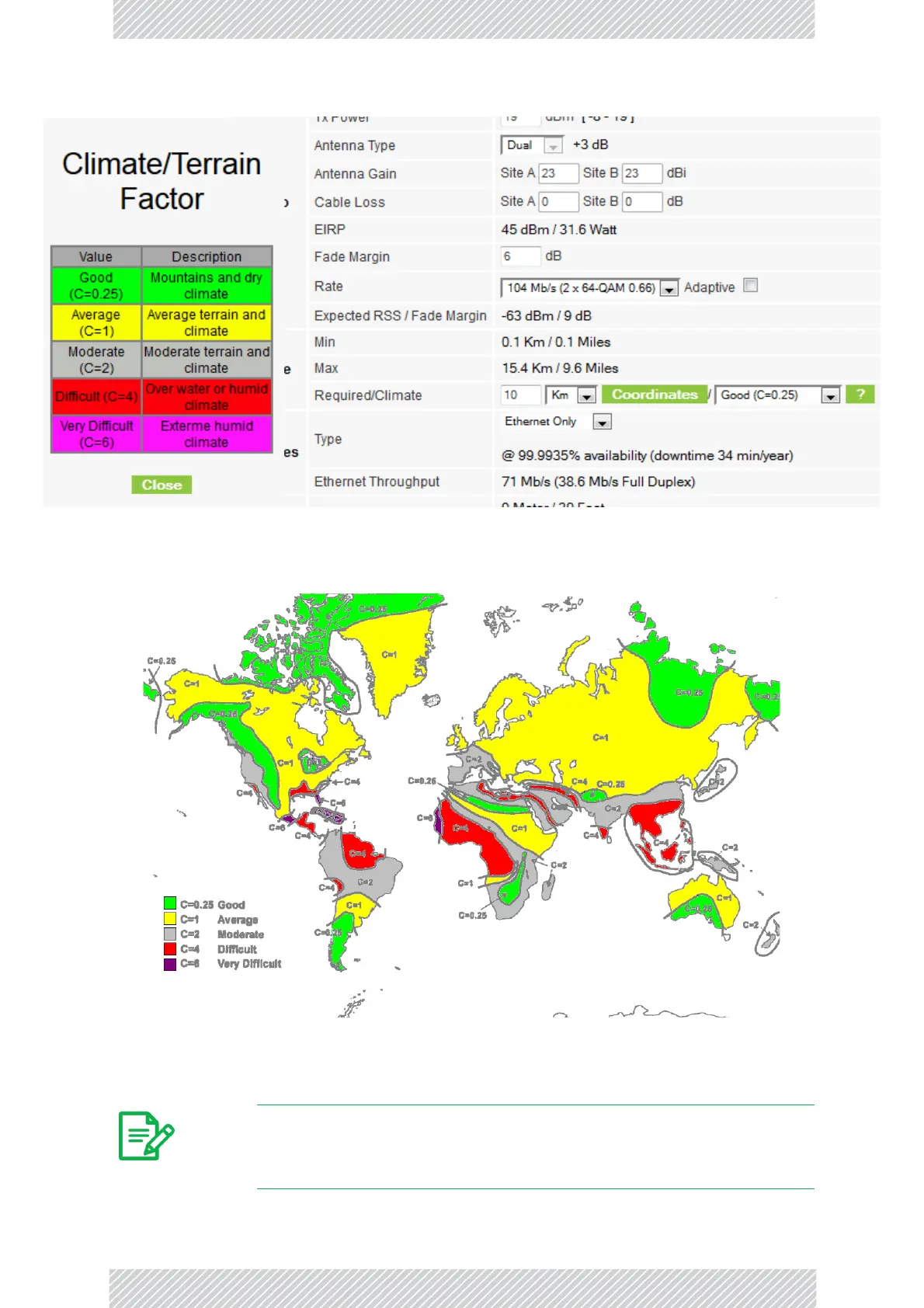

Figure19‐7:ClimacticCFactordescription

InFigure 19‐8wedisplayamapoftheworldshowingCFactorcontours:

Figure19‐8:WorldmapshowingCFactorcontours

11.ClickCalculatetoobtaintherequiredperformanceestimate.

Note

Placingthecursorinanyothercalculatedfieldwillalsoupdatethe

calculatedresults.
