RADWIN2000D+UserManual Release3.6.00 8‐7
ObtainingReports Chapter8

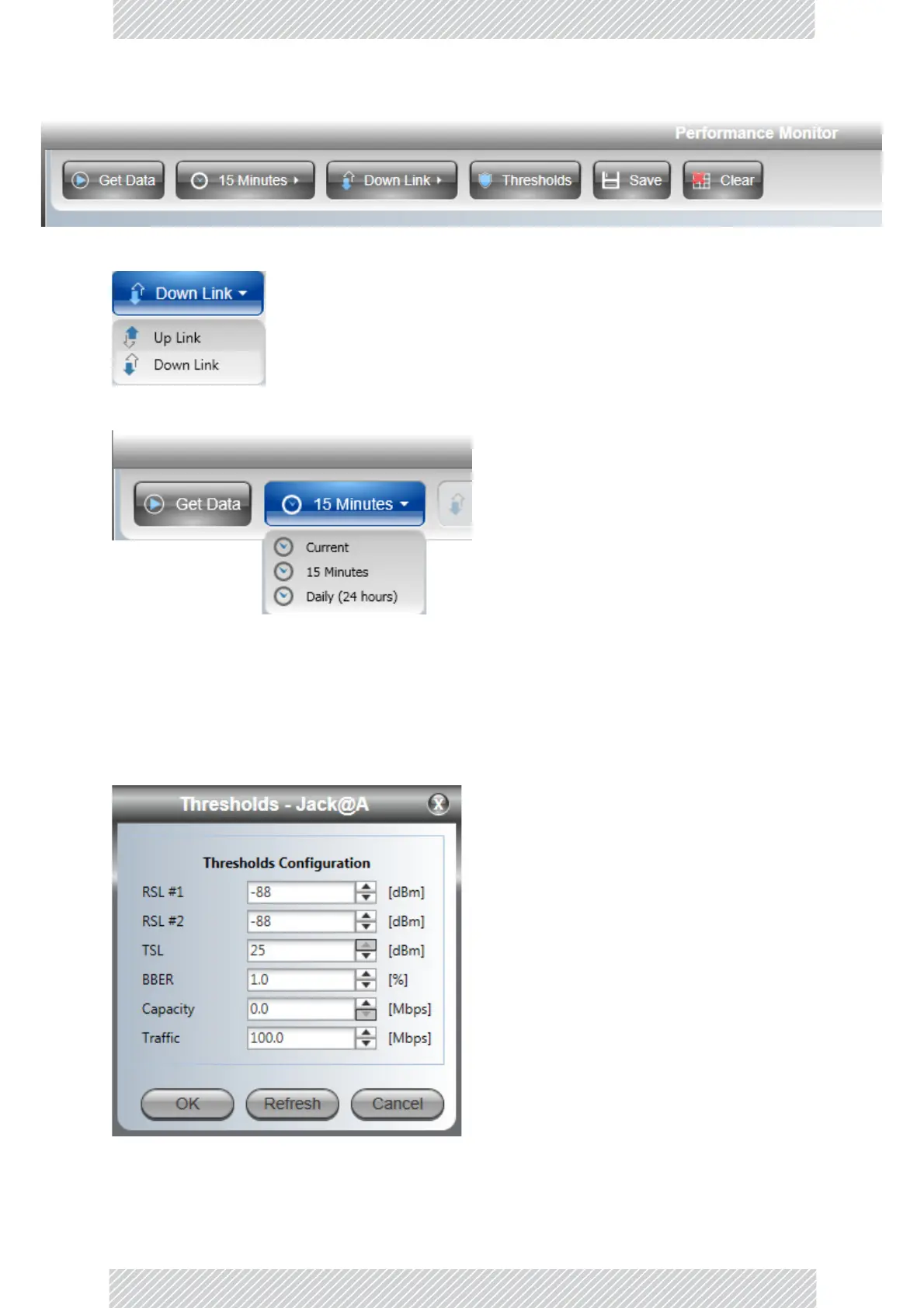

YoucanchoosemonitoringforUplinkorDownlink:
Choosethedataperiodrequiredwiththe15Minutesbutton.
•Currentgivesyouthelatestentry.
•15Minutesprovidesdatainascrolldownlistin15minuteintervals
•Daily(24hours)showsresultsforthelast30daysatmidnight.
TheThresholdbuttonenablesyoutosettheuppertrafficthresholdsforreporting.Traffic
conditionsabovethethresholdindicatecongestionandprobablylostframes.Thethresholds
aresetseparatelyforuplinkanddownlink:
Figure8‐2:Settingtheuppertrafficthreshold‐Downlink
Togetdatafordisplay,clickGetData.Theprocessmaytakea
fewseconds.
