RADWIN2000D+UserManual Release3.6.00 6‐23

ChangingtheLinkBand Chapter6

• SuchadditionalBandsmustbeavailablewithintheframeworkofyourlocalregulations

TheforegoingappliestobothregulatedandunregulatedBands.

 Toobtainand installadditionalbands:

1.AsInstaller,openthewindowofFigure 6‐10above,andclickAddBands. Thefollow‐

inginstructionpanelisdisplayed:

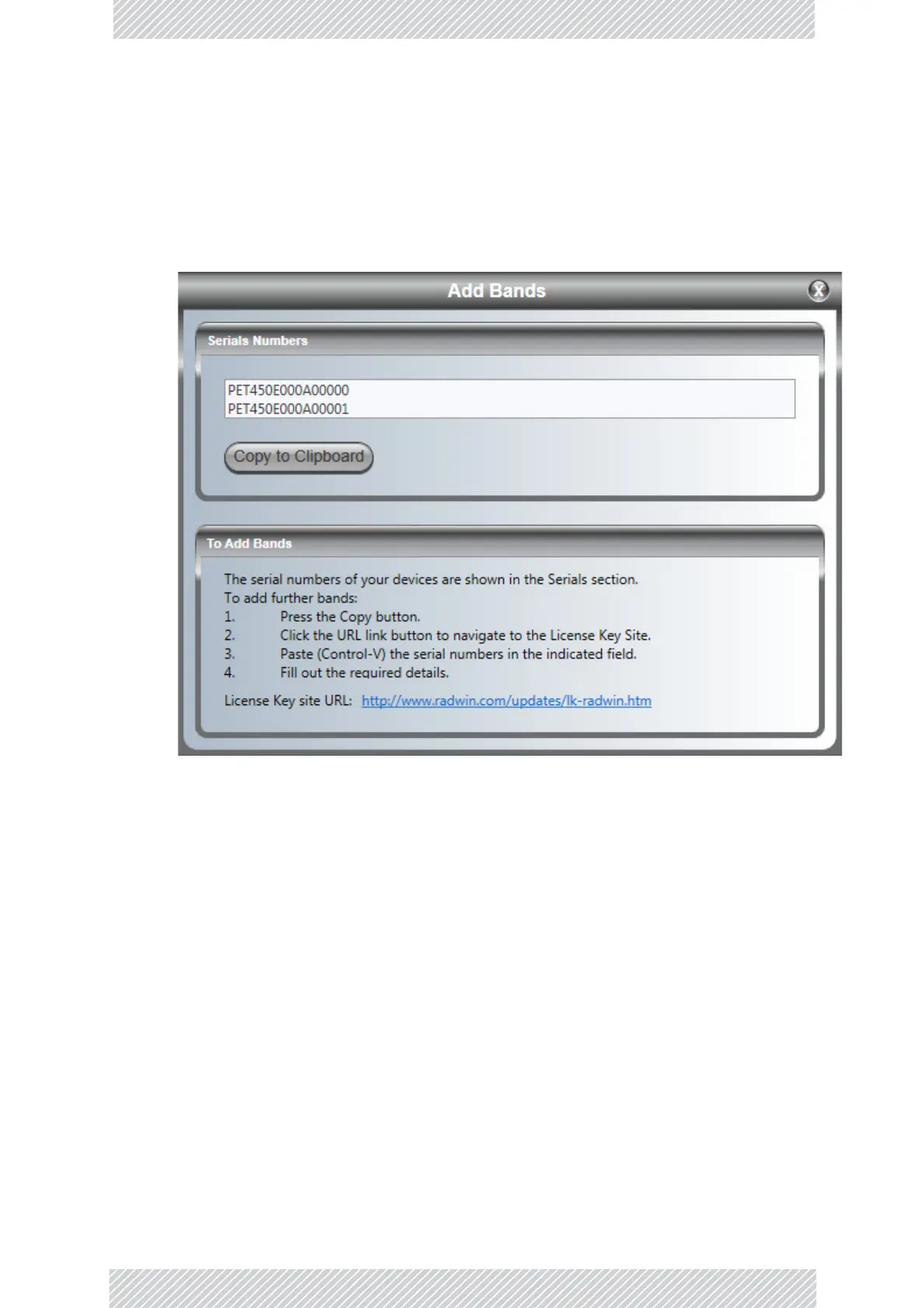

Figure6‐12:AddBandsInstructionsPanel

TheserialnumbersdisplayedarethoseoftheODUsinthelink.ClickCopytoClip‐

board.

Nowcarryoutsteps2to5inFigure 6‐12.St ep2willtakeyoutoaWebpage,which

containsaformlikethis:
