RADWIN2000D+UserManual Release3.6.00 6‐15

AdvancedLinkConfiguration Chapter6

NoticetheRatelineshownenlarged:

ObservethatintrafficmodethethroughputandMCSareattheirmaximumandtheCBWis

alsoatitsmaximum.Underadverseconditions,suchashighinterference,DBSwillcause

theseparameterstofallbackforbestthroughput.

6.3AdvancedLinkConfiguration

Thelinkasconfiguredsofar,issufficienttoprovidebasicservice.Additionallink‐level

servicesthatcanbeconfiguredfromtheLinkConfigurationtabonthetopleftofthemain

window.

6.3.1AirInterface

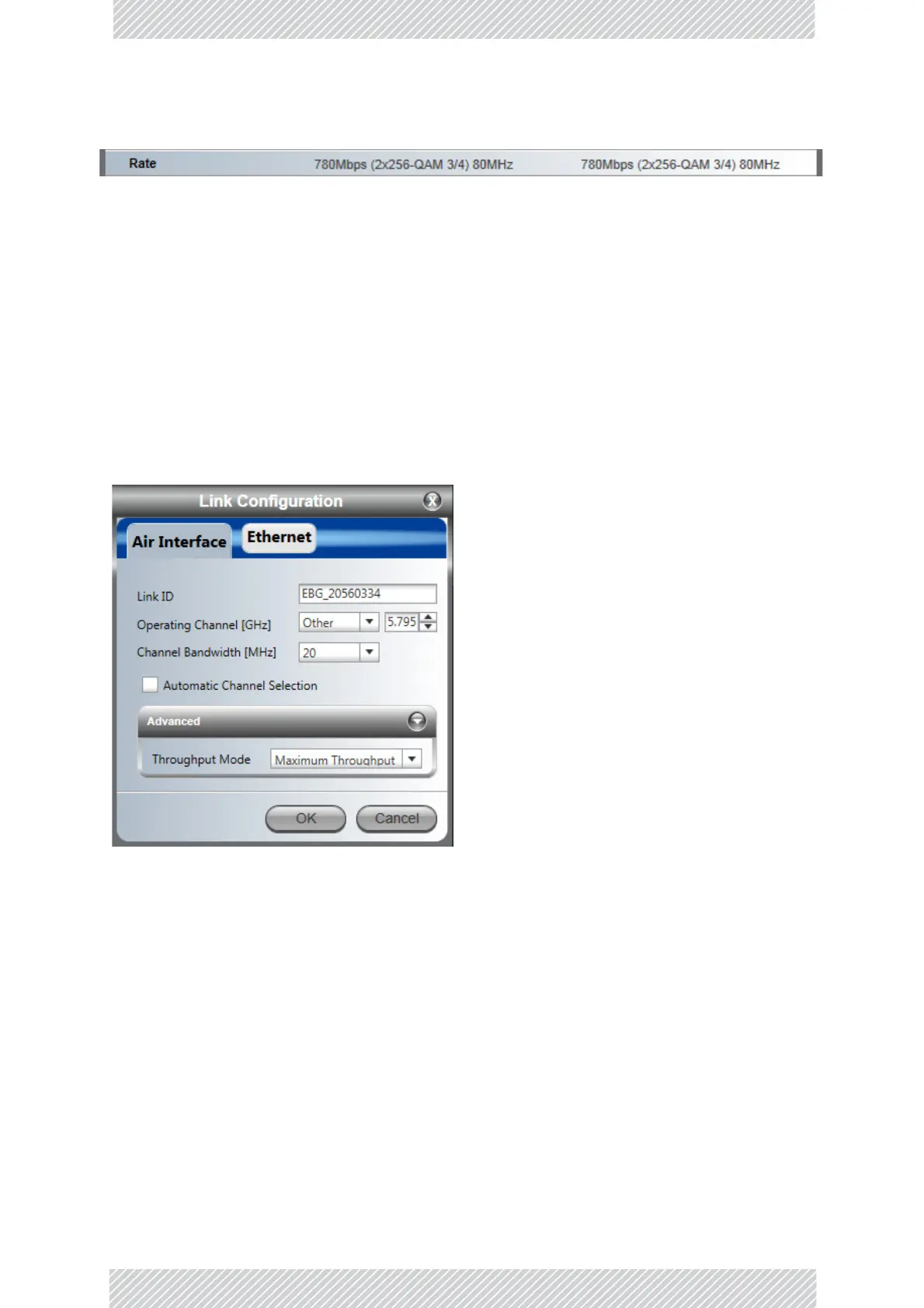

Figure6‐5:LinkAirInterfaceparameters‐manualACS(CBW10or20MHz)
