RADWIN2000D+UserManual Release3.6.00 12‐2

GSUFunctionality

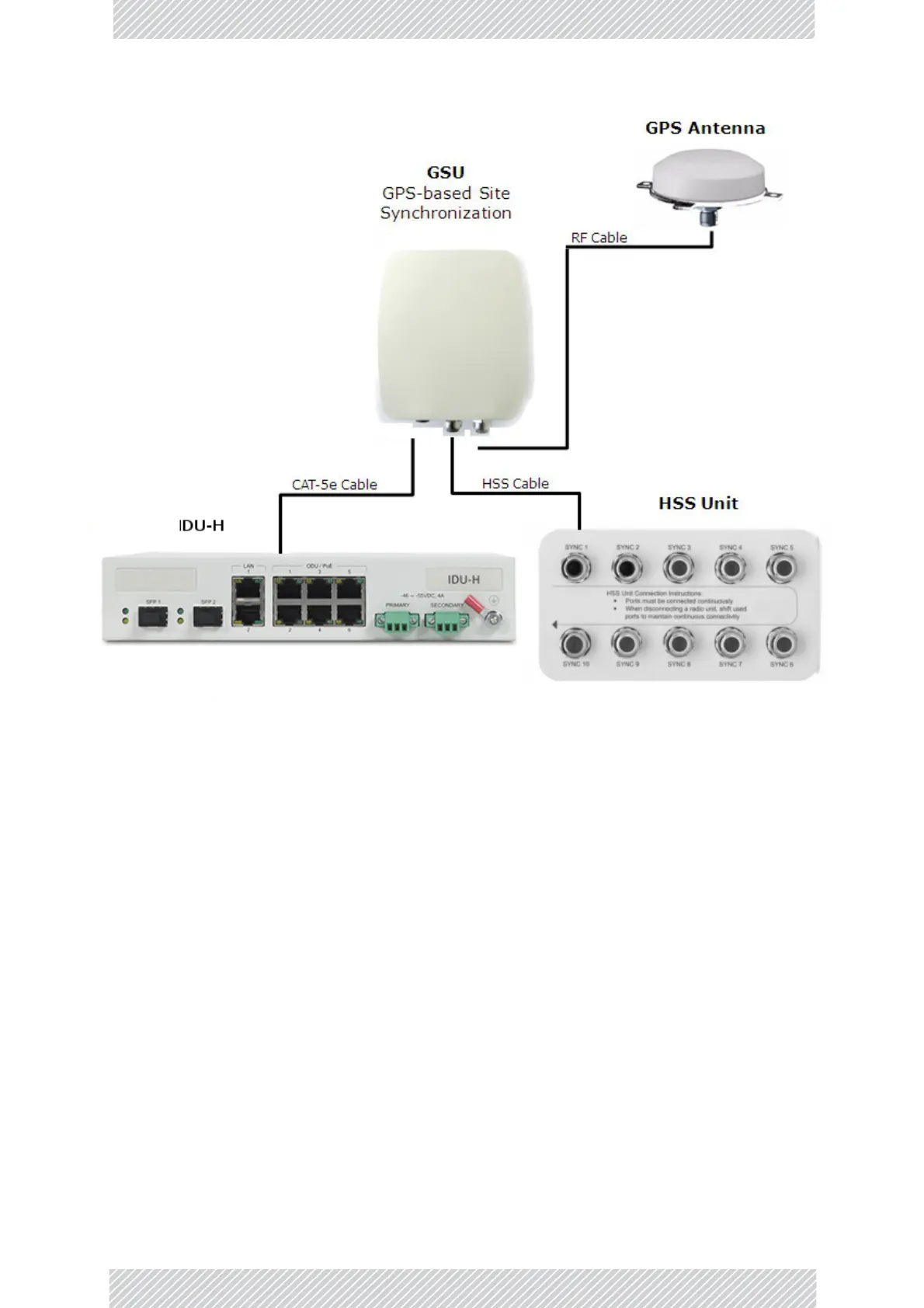

Figure12‐1:GeneralGSUconfigurationusingbothEthernetandanHSSunit

12.2GSUFunctionality

TheGSUreceivesasynchronizationsignalfromtheGPSoncepersecond.Itdistributesa

RADWINproprietarysynchronizationsignaltoallotherODUunitsusingaproprietary

synchronizationsignaloverEthernet.

WhentheGSUdoesn’treceiveasynchronizationsignalfromtheGPSfor30seconds,itmoves

automaticallytoSelf‐GenerationmodeuntiltheGPSrecovers.

12.3GSUKitContents

TheGSUpackageincludes:

• 1xGSU

• 1xGSUMountingKit

• 1xGPSAntenna

• 1xGPSAntennaMountingKit
