RADWIN2000D+UserManual Release3.6.00 7‐2

SiteConfigurationWindow Chapter7

7.2SiteConfigurationWindow

TheSiteConfigurationwindowsareslightlydifferent fortheRT‐A(HBS)andRT‐B(HSU).

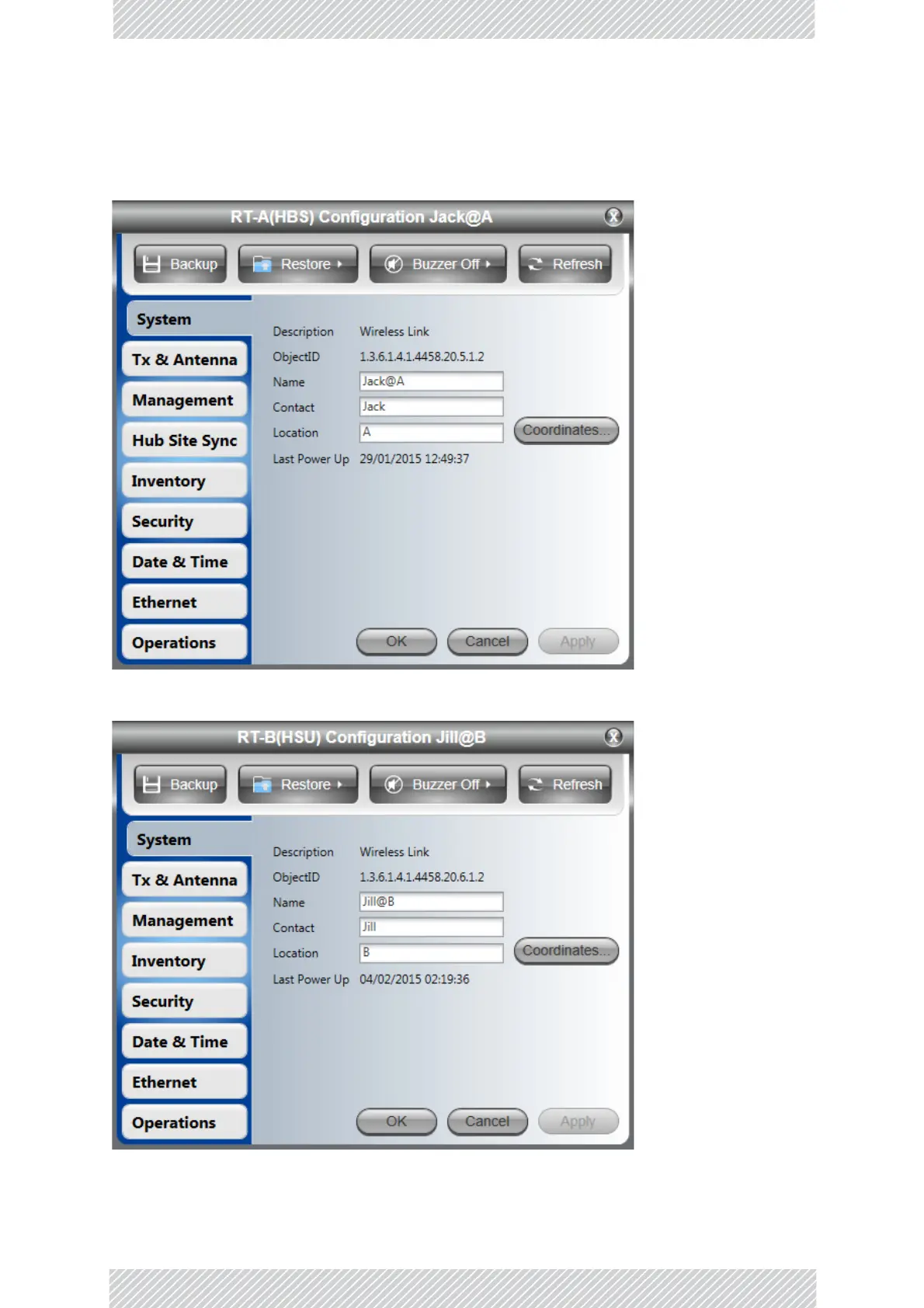

Figure7‐2:SiteConfigurationwindow‐RT‐A(HBS)

Figure7‐3:SiteConfigurationwindow‐RT‐B(HSU)
