RADWIN2000D+UserManual Release3.6.00 14‐3
BulkSoftwareBackup Chapter14

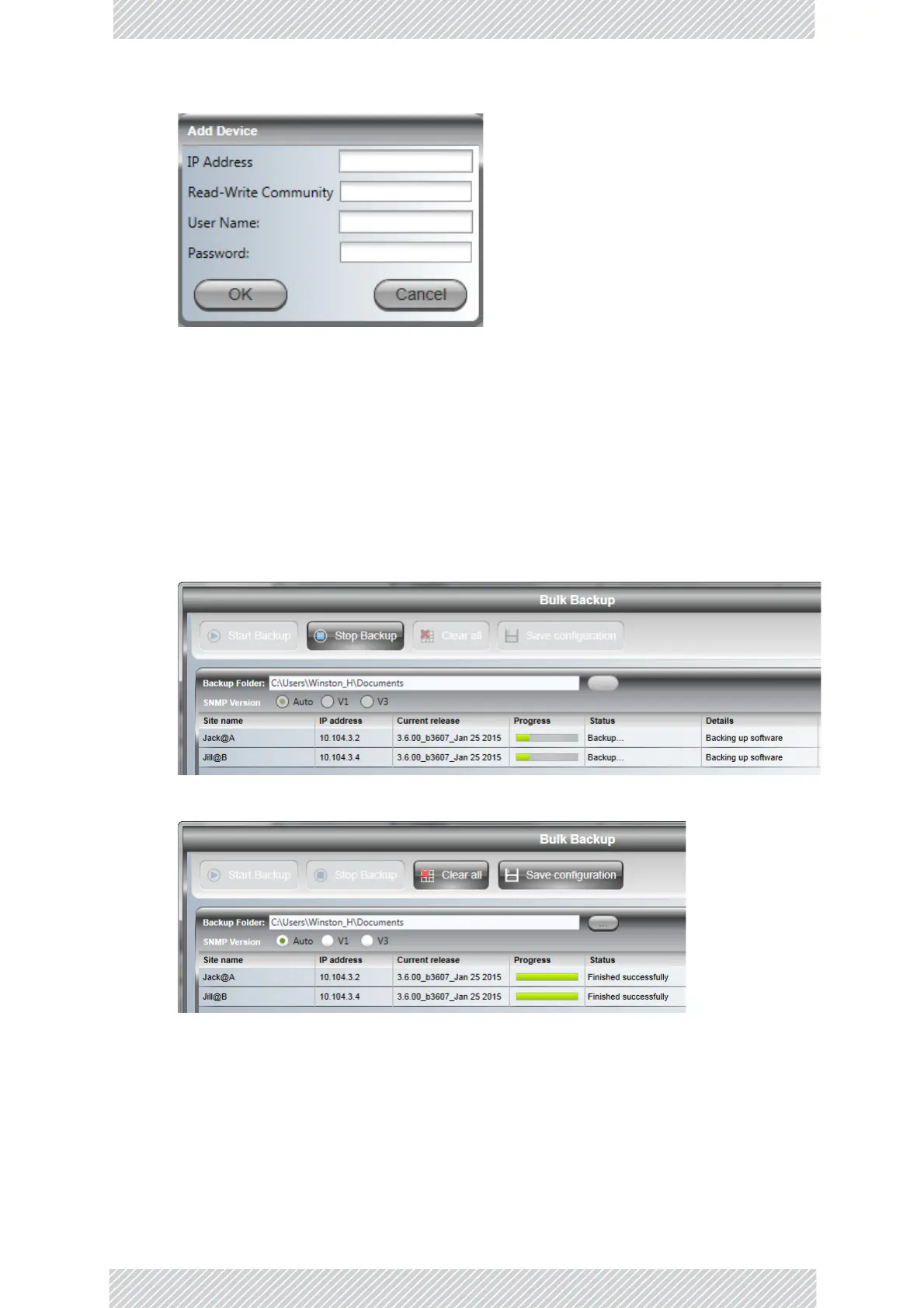

Figure14‐3:Addingasinglesiteforbackup
EntertheIPaddressofthesite,theRead‐WriteCommunity(Default:netman)and
thenclickOK.ThesitewillappearintheSoftwareUpgradelistbox.
Itemsfromthelistcanbeclearedbyselectingthemandthenusingtherightbutton.
TherightbuttoninFigure 14‐3,mayberusetoremoveoneormoreselectedsites.
3.YoumaychoosetheSNMPversionbutprobablyitshouldbebestleftatyourlog‐on
setting.
4.ClicktheStartBackupbutton.Progressbarsindicatebackupstatus.
Thesuccessorfailureofthebackupisdisplayedoncompletion:
Saveconfigurationproducesatextfileintheformatoftheaboveex ampleforbackingupan
installedlink.
Thefilesproducedbytheaboveprocessare:
10.104.3.4_29.01.2015.backup
10.104.3.2_29.01.2015.backup
BulkBackupConfig_2015_01_29.txt
