4.2.3PoweroverEthernet(PoE)Devices
RADWIN’sGigabitPoweroverEthernet
(GbEPoE)deviceprovidesdataand
powertoRADWIN2000D+outdoor
units.ThePoEdeviceisavailablewitha
varietyofACcableswithdifferentplug
types.
ThisistherecommendedPoEdevicefor
usewithHBSsandHSUs.
TheunitcomeswithaVACcable.Both
thecablelengthandplugareregion
dependent.

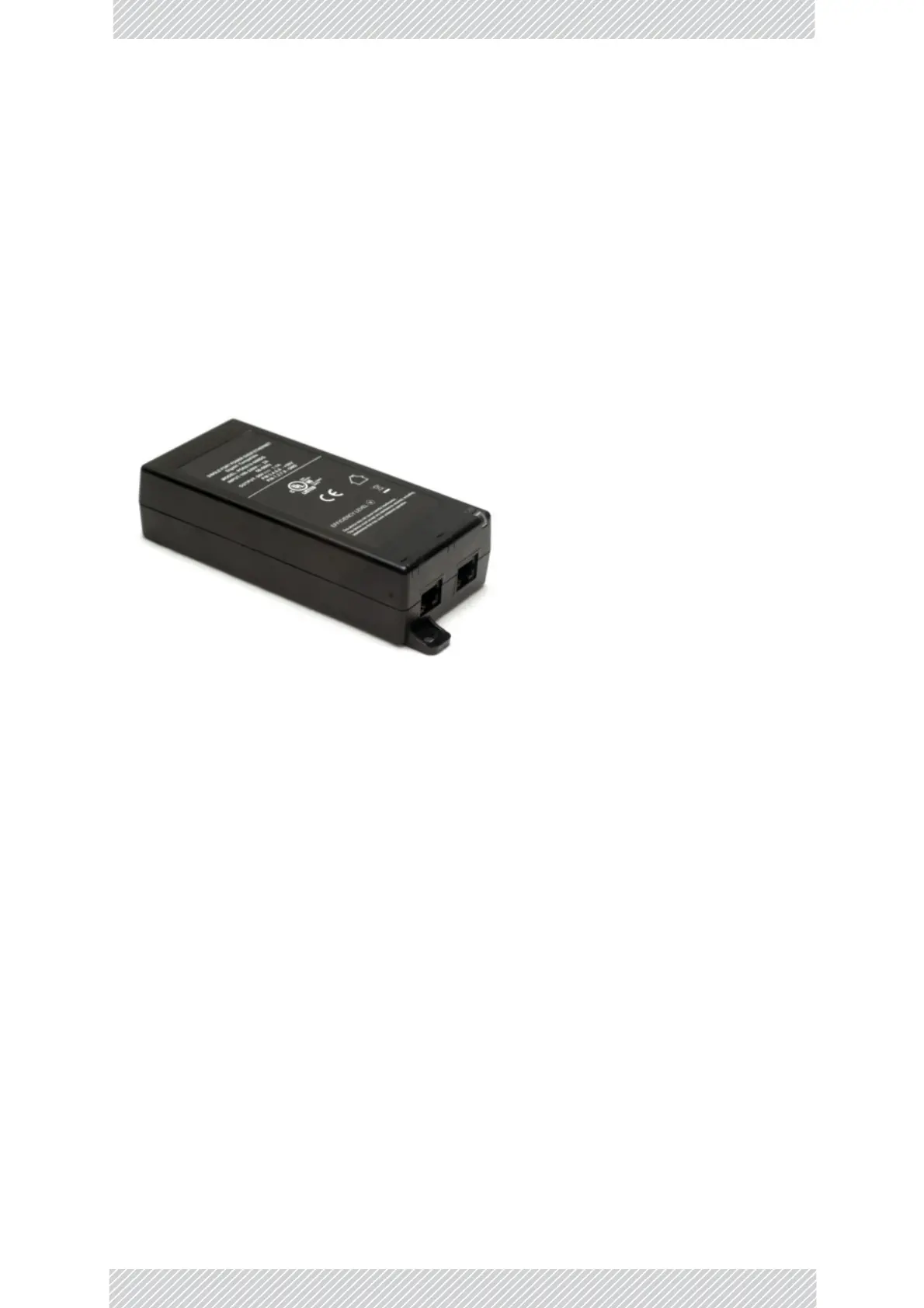

Figure4‐2:GbEPoEdevice
4.2.4IDU‐Haggregationunit
TheIDU‐HprovidesaggregationformultipleRADWINODUsandHBSsatahubsite.It
supportsallRADWINODUs.Itfeatures‐
• SixPoEports(PoElegacymode/RADWINPoE)
• Upto25WperPoEport
• 2LANInterfaces10/100/1000Mbps;auto‐negotiation
• SFPInterfaces:2xSFPportsof1000Mbps(standardMSA)
Itis19”rackmounted,1Uandhalfwidth.Powerfeedingis44VDC‐56VDC,Dualredundant
inputsthroughstandardIDU‐Ctypeadapters.
