RADWIN2000D+UserManual Release3.6.00 21‐4
SiteManagement‐MasterODU Chapter21
TheforegoingappliestobothODUs.Thefunctionalitydescribedbelowispredominantlysite
oriented.SiteconfigurationitemsshownforSite_AmaybecarriedoutforSite_Bbylogging
ontoit.
21.9Site Management‐MasterODU
21.9.1TheMainWindow

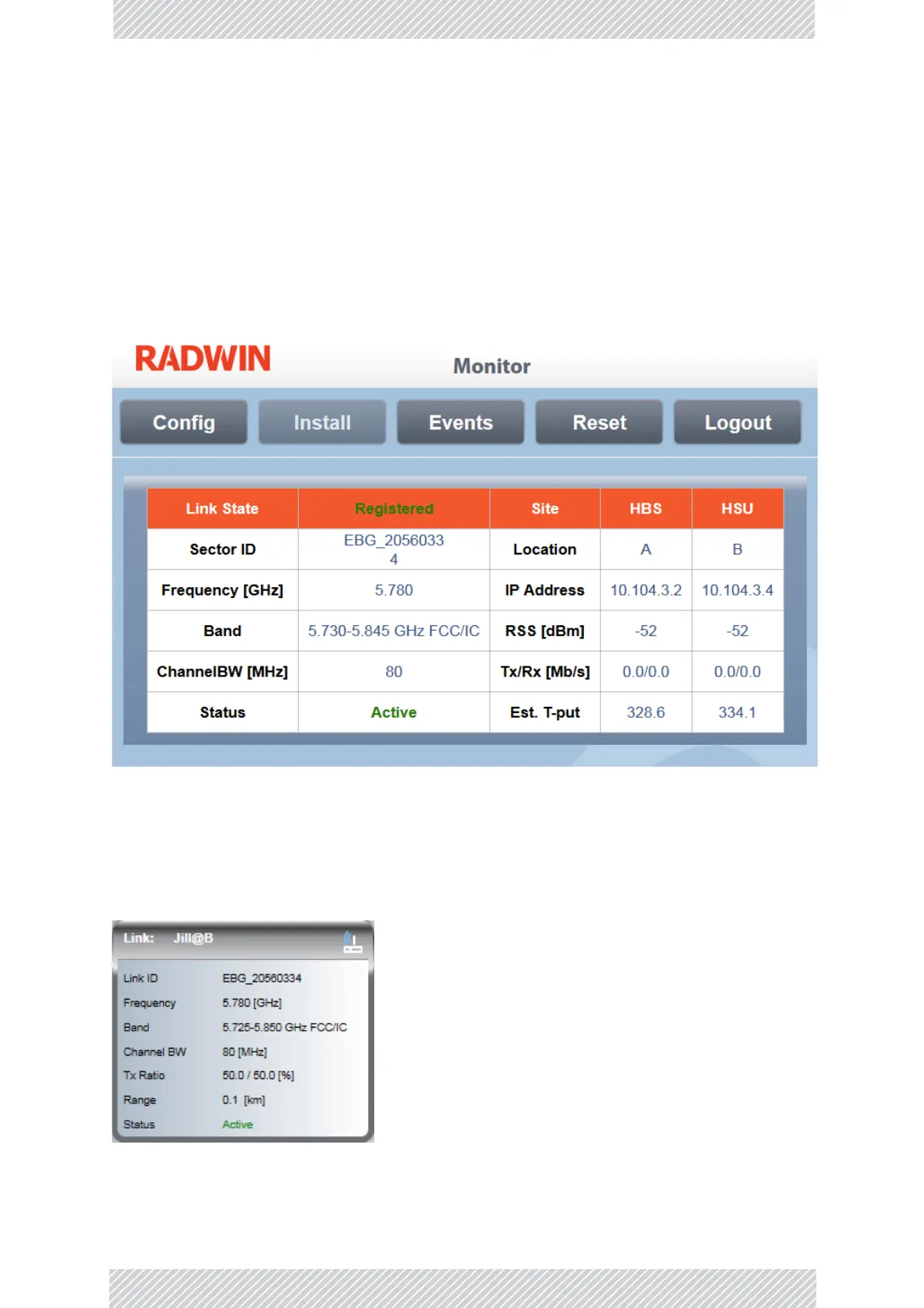

Figure21‐2:Webinterface‐Mainwindow
ThelinkID(EBGX20560334)appearsallorinpartastheheading.Themainpanelisself
explanatory.ThegreenActiveindicatorwillvaryaccordingtothestatusoftheMasterODU
shownbytheRADWINManager.Thetopgreenitem(Registeredhere)indicatesthestatusof
theSlaveODU.
Figure21‐3:LinkStatuspanel
