RADWIN2000D+UserManual Release3.6.00 7‐24

Management Chapter7

TheiconnexttotheCRCerrorcountmaybeclickedtoresetthecountertozero.

 ToconfiguretheEthernetMode:

•IntheEthernetPortsConfigurationpane,usethedrop‐downmenustochoosethe

requiredmodes.

Operations

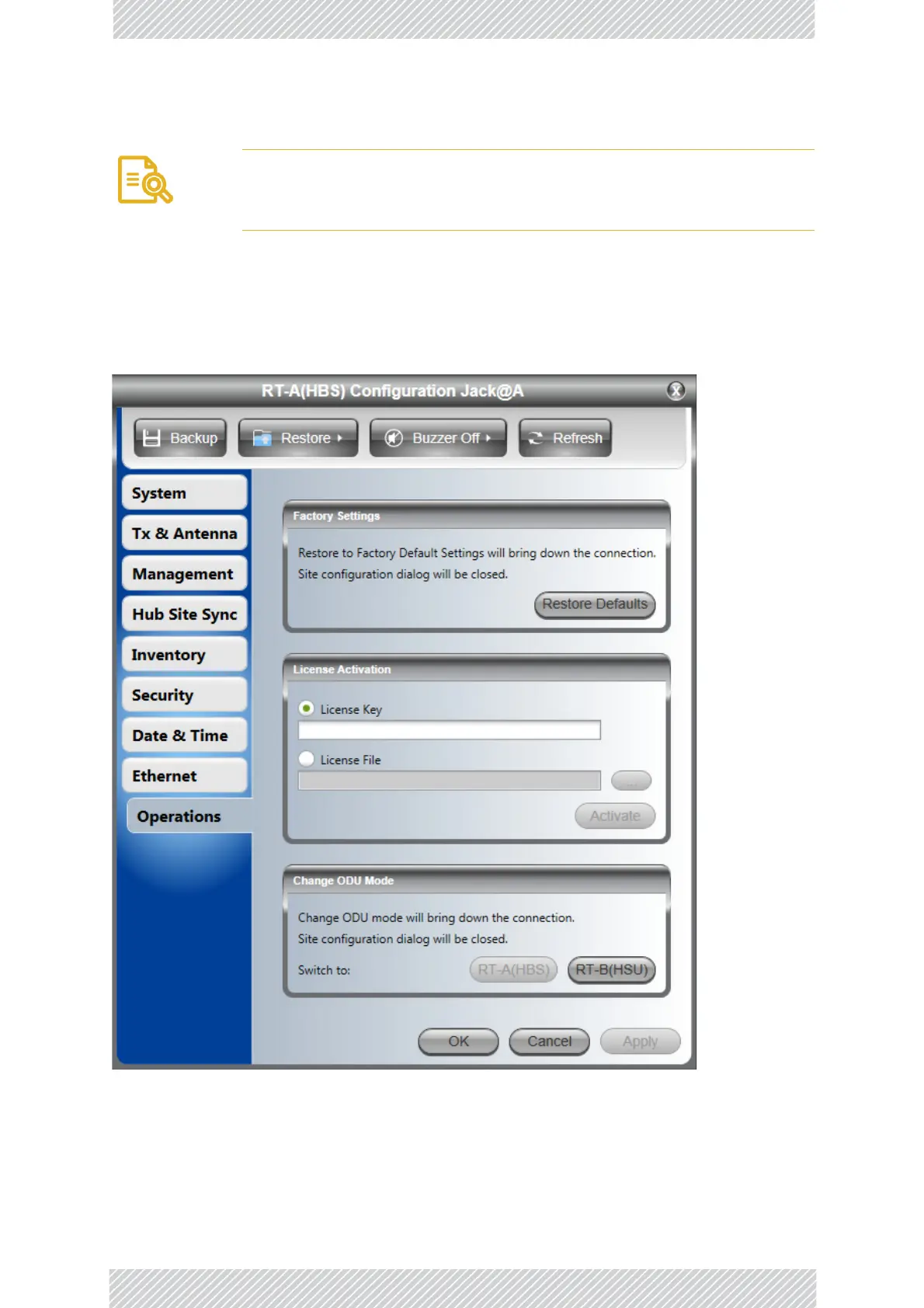

Figure7‐17:RestoreFactorySettings,LicenseActivationandChangeODUMode

RevertingtoFactorySettings

ClickingtheRestoreDefaultsbuttonopensthefollowingselfexplanatorydialog:

Caution

Youshouldnotreconfiguretheportthatisusedforthemanagingc omputer

connection,sinceawrongconfigurationcancauseamanagement

disconnectionorEthernetservicesinterruption.
