RADWIN2000D+UserManual Release3.6.00 4‐4

IDU‐Haggregationunit Chapter4

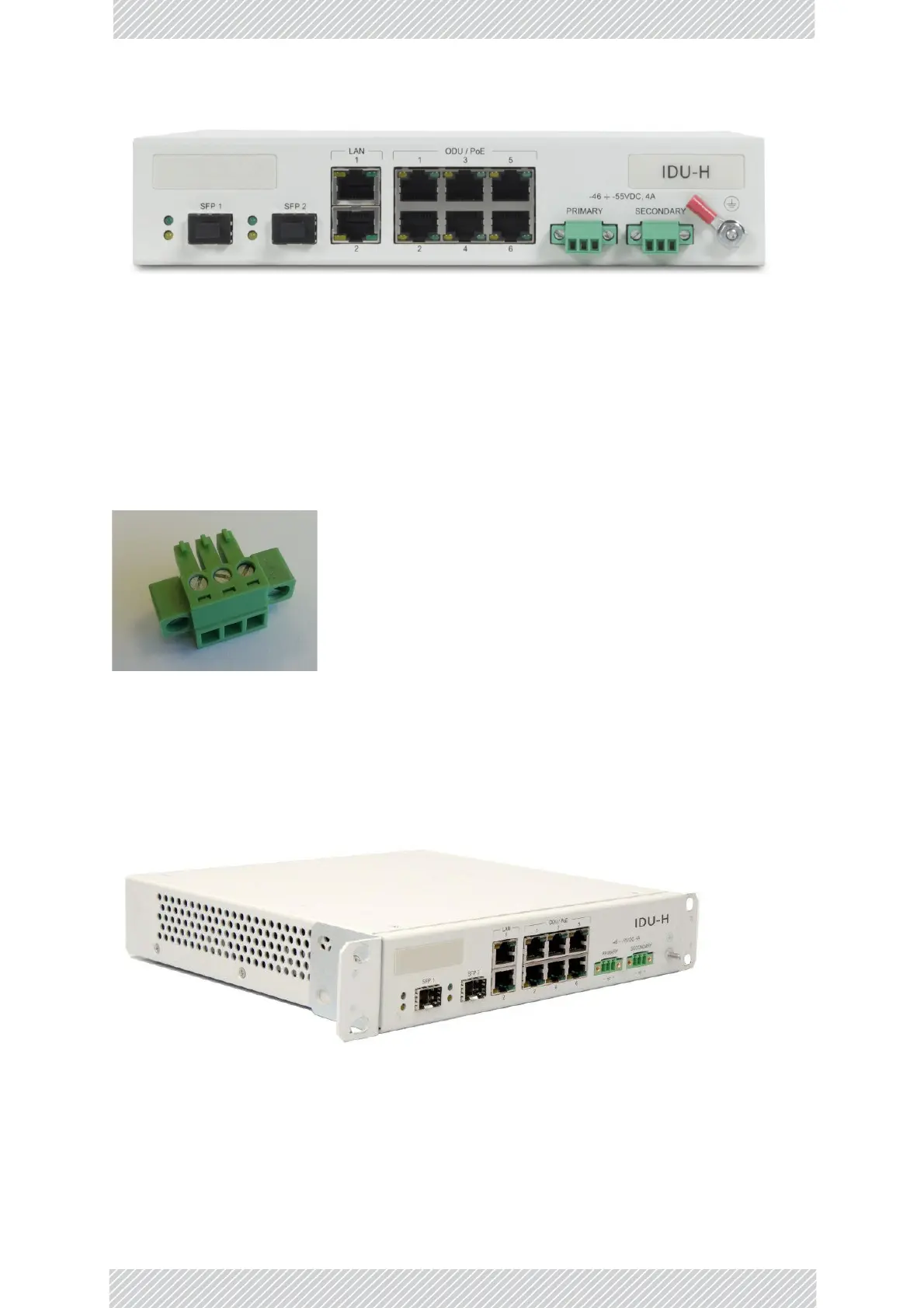

Figure4‐3:IDU‐H

TheIDU‐Hpackagecontains:

• OneIDU‐H

• Oneshortmounting ear

• Onelongmountingear

• Onedualconnectortojointwounitsmountedsidebyside

• TwoDCpowerplugsforpowercables‐seeFigure 4‐4below

Figure4‐4:DCthreepinpowerplug

Thepowerconnectorsare3pininlinefemale,withpolarities(lefttoright)minus,ground,

plus.Ifrequired,anAC/DCpoweradaptershouldbeorderedseparately,dependingonyour

region.

TheIDU‐Hmaybeinstalledinsingleordoubleconfigurations:

Figure4‐5:IDU‐Hfrontview‐singleconfiguration
