RADWIN2000D+UserManual Release3.6.00 5‐9

SettingRADWINManagerPreferences Chapter5

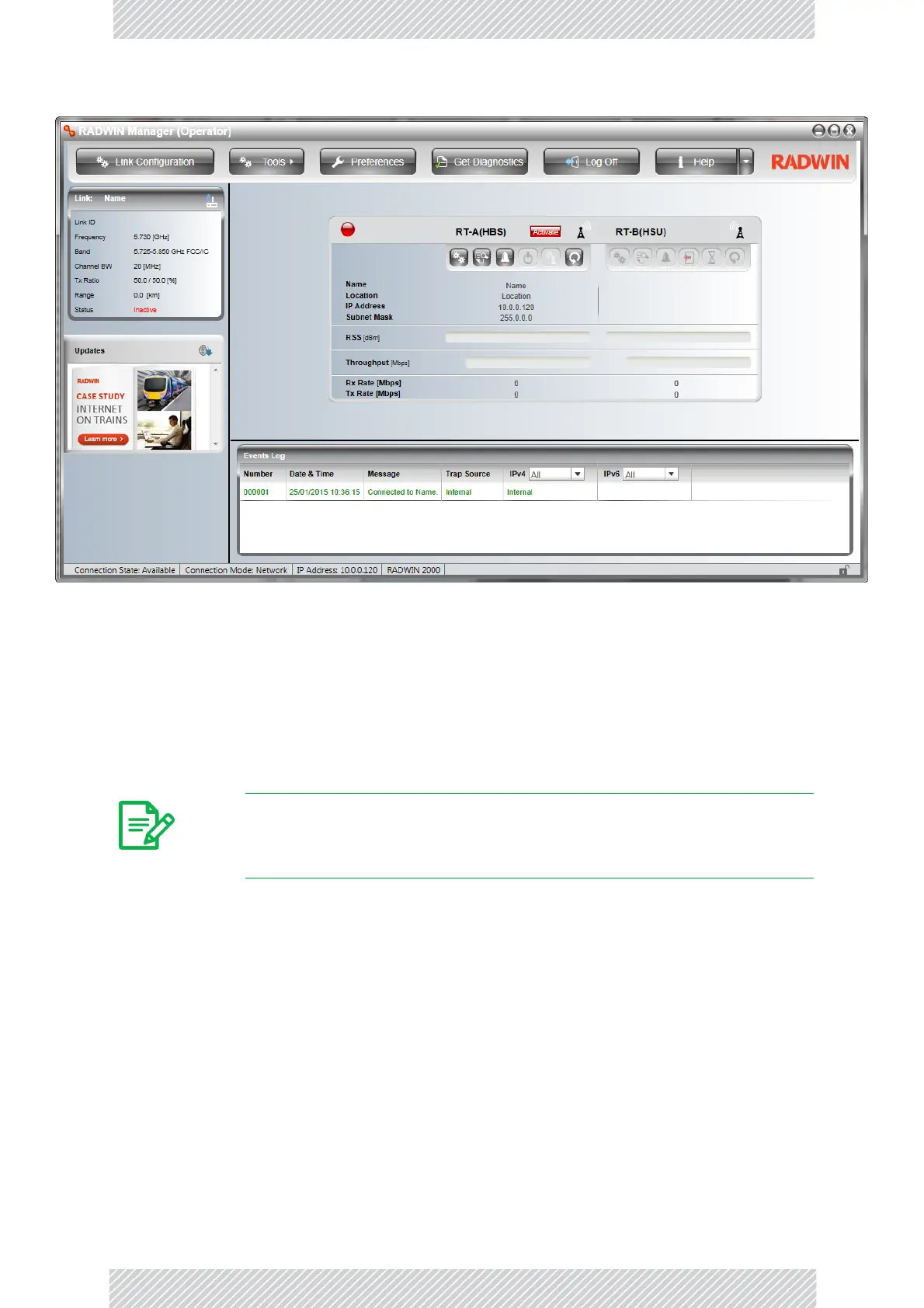

Figure5‐9:Mainwindowpriortolinkconfiguration

5.6SettingRADWINManagerPreferences

ThePreferencestabsappearingonboththeRT‐A(HBS)andRT‐B(HSU)relateentirelytothe

waytheManagerdisplayscertainitemsfortheconnectedunit.Theyarecompletelylocalto

themanagingcomputer.TheyareidenticalforboththeRT‐A(HBS)andRT‐B(HSU).

Note

Eachtechnicianservicingasectorwillneedtosetuphismanaging

computer(typicallyalaptop)withhisownpreferences.
