RADWIN2000D+UserManual Release3.6.00 4‐8

Accessories Chapter4

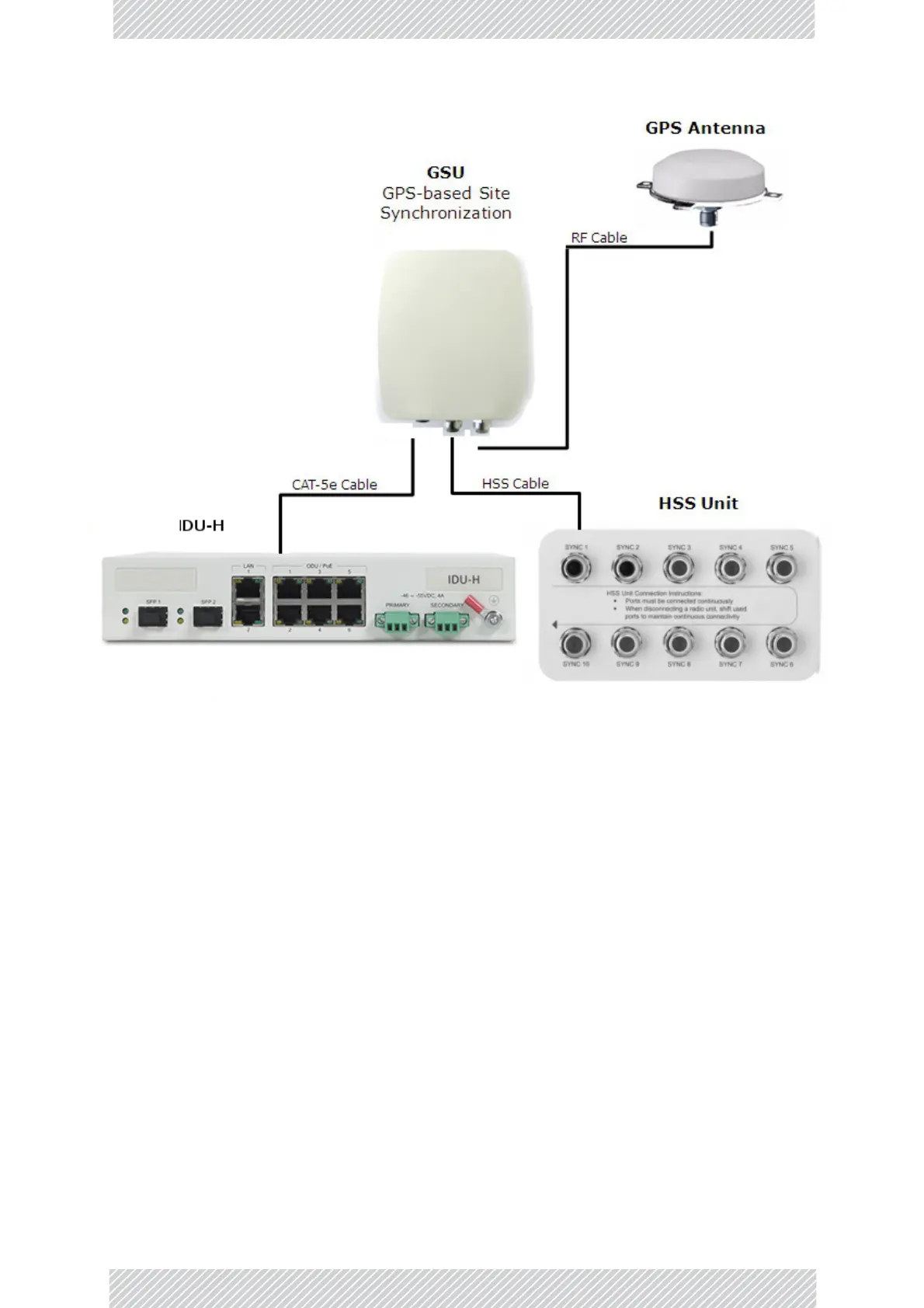

Figure4‐11:GeneralGSUconfigurationusingbothEthernetandanHSSunit

LightningProtectorUnit(LPU)

Theuseoflightningprotectionisdependentonregulatoryandenduserrequirements.The

RADWIN2000D+ODUisdesignedwithsurgelimitingcircuitstominimizetheriskofdamage

duetolightningstrik es.ItisdesignedforusewithRADWINproducts.See
