RADWIN2000D+UserManual Release3.6.00 16‐4
AssigningQueuePriorities Chapter16
 Toconfigurequeueprioritiesforuplinkanddownlinkinturn:
1.Foreachqueue,bothdownlinkanduplinkentertherequiredweight,MIRandTTL.
TheMIRandTTLmay respectivelybeleftUnlimitedandDisabled inwhichcasethe
systemwillusea“besteff ort”method.
Ifyouexceed100%totalweight,youwillreceiveanerrormessage.

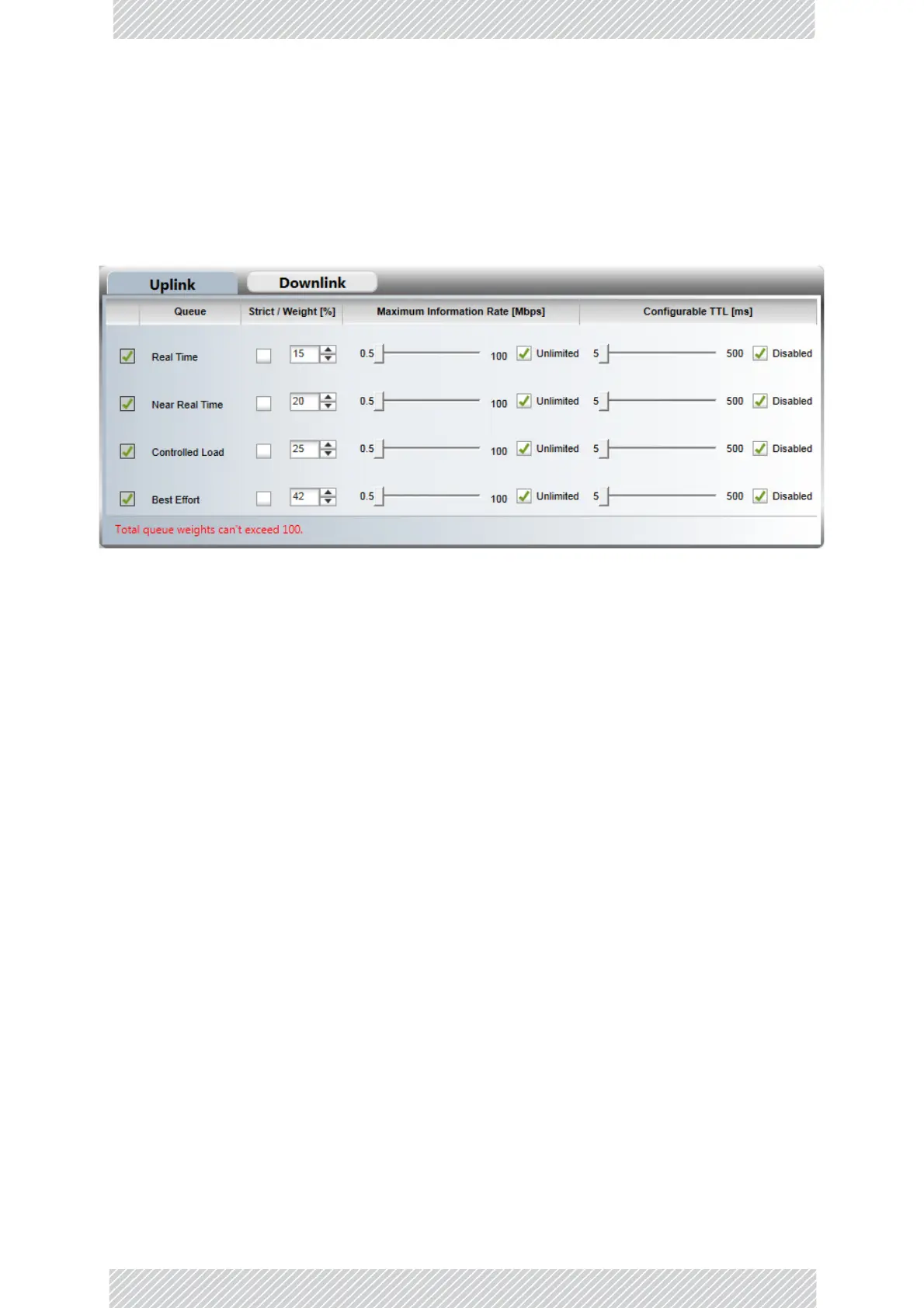

Figure16‐2:
ThefourQoSdataqueues
Youwillberequiredtocorrectthisbeforeleavingthewindowotherthanbycancel‐
lation.
Ifyouareunder‐booked,forexamplebysettingaqueuetozero,theunusedweight
willbedistributedtotheremainingqueues.Theeffectofdoingthiswillonlybecome
apparentundercongestion.Inparticular,aqueuesettozeroweightwillbecome
nearlyblockedundercongestionwithpack etspassingthroughonabesteffortbasis.
2.Whenyoucompleteyourentries,intheQoSConfigurationwindow(Figure 16‐1),
click
OKtosavethemandcontinue.
