Radwin 2000 D+ - Figure 19-4 Band Selector

To Next Page

To Previous Page

RADWIN2000D+UserManual Release3.6.00 19‐7

RunningtheLinkBudgetCalculator Chapter19

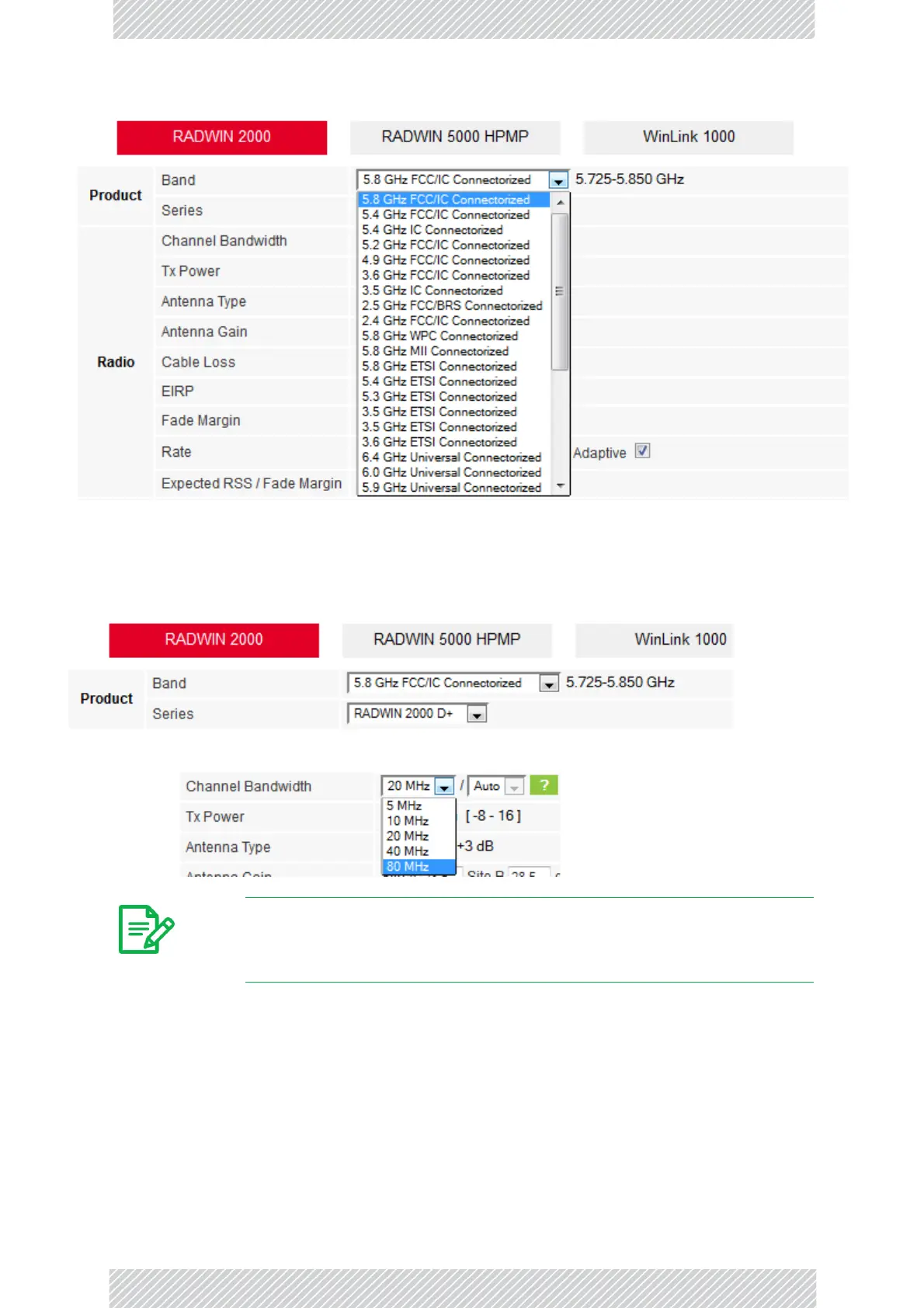

Figure19‐4:Bandselector

Forthepurposesofourexample,wewilluse5.8GHzFCC/ICConnectorized.

3.ChoosetheSeries:

4.ChoosethechannelBandwidth:

5.ChoosetherequiredTxPower.UnderAdaptiveRate,thiswill betheMaxTxPower

andyoucannotchangeit.

6.Choosetherequiredantennatype‐dualorsingle.Forintegratedproductsthisitem

willbedisabled.

7.Entertheradioparametersforeachsite:

Note

CollocatedODUsuseRFPEsothereisnoHSSentry
