RADWIN2000D+UserManual Release3.6.00 17‐2
ConfiguringFalseRadarMitigation Chapter17
•Variable:Falseradarswithvariablepulsewidthhavingvariablerepetitionfrequency
•Staggered:Falseradarswithvariablerepetitionfrequencywithinaburstperiod
(Appliesto5.4GHzETSIonly)
17.3Configuring FalseRadarMitigation
TheconfigurationmethodfortheMasterODU(ETSIandFCC/IC)isthesameasfortheSlave
ODU(ETSIonly).WewilldemonstratetheMasterODUforalinkusingthe5.3GHzFCC/IC
band:
 ToconfigureFalseRadarMitigation:
1.LogontotheMasterODUasInstaller.
2.EntertheConfigurationwindowandopentheAdvancedtab.

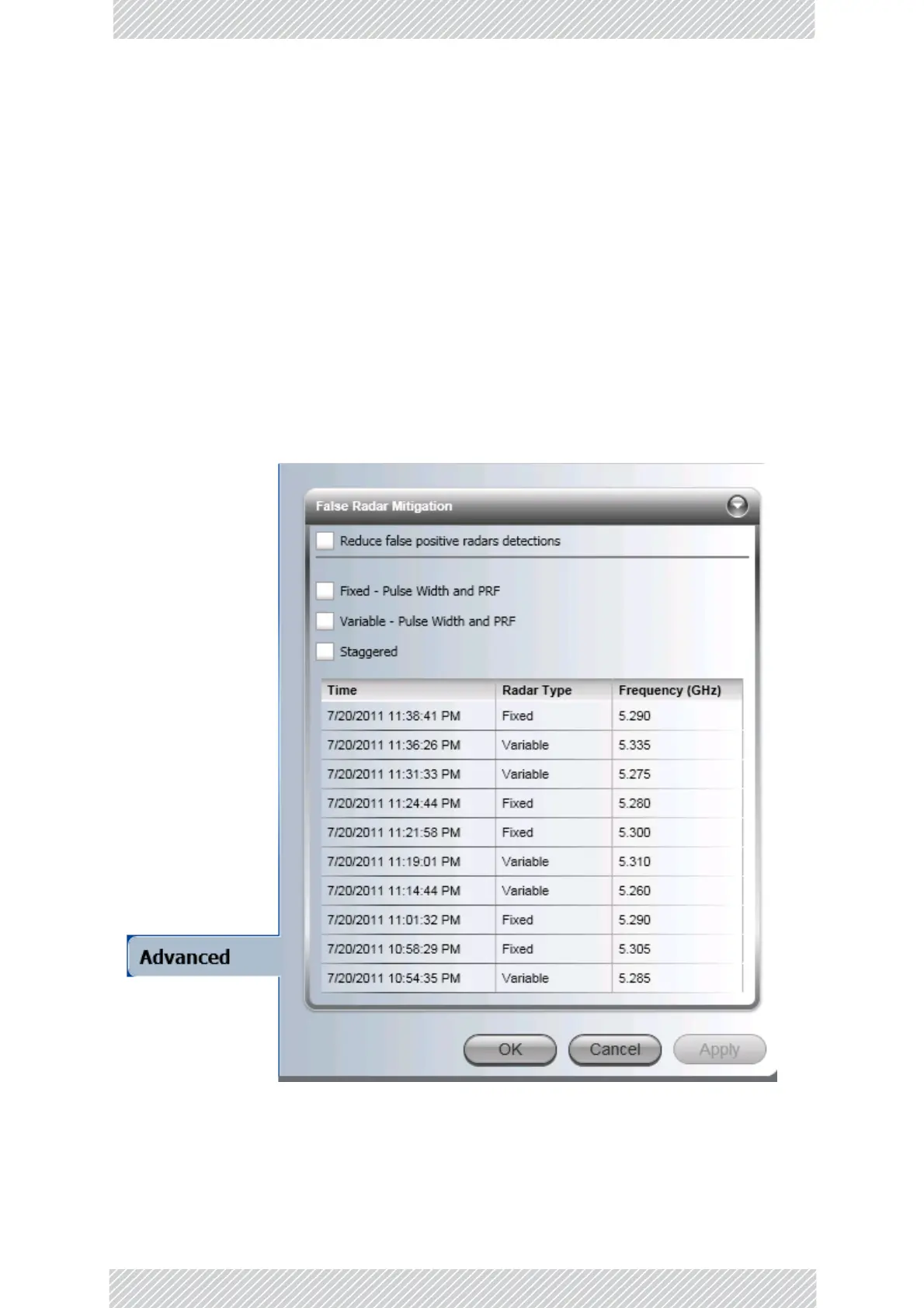

Figure17‐1:FalseRadarMitigation
3.TheDFSFrequencyStatusTableatthebottomofFigure 17‐1showsthetime,type
andfrequencyofthelastradarsdetected.Thistableshouldbeusedtoselectthe
