RADWIN2000D+UserManual Release3.6.00 11‐6
ConfiguringtheRT‐A(HBS)asanHSM Chapter11

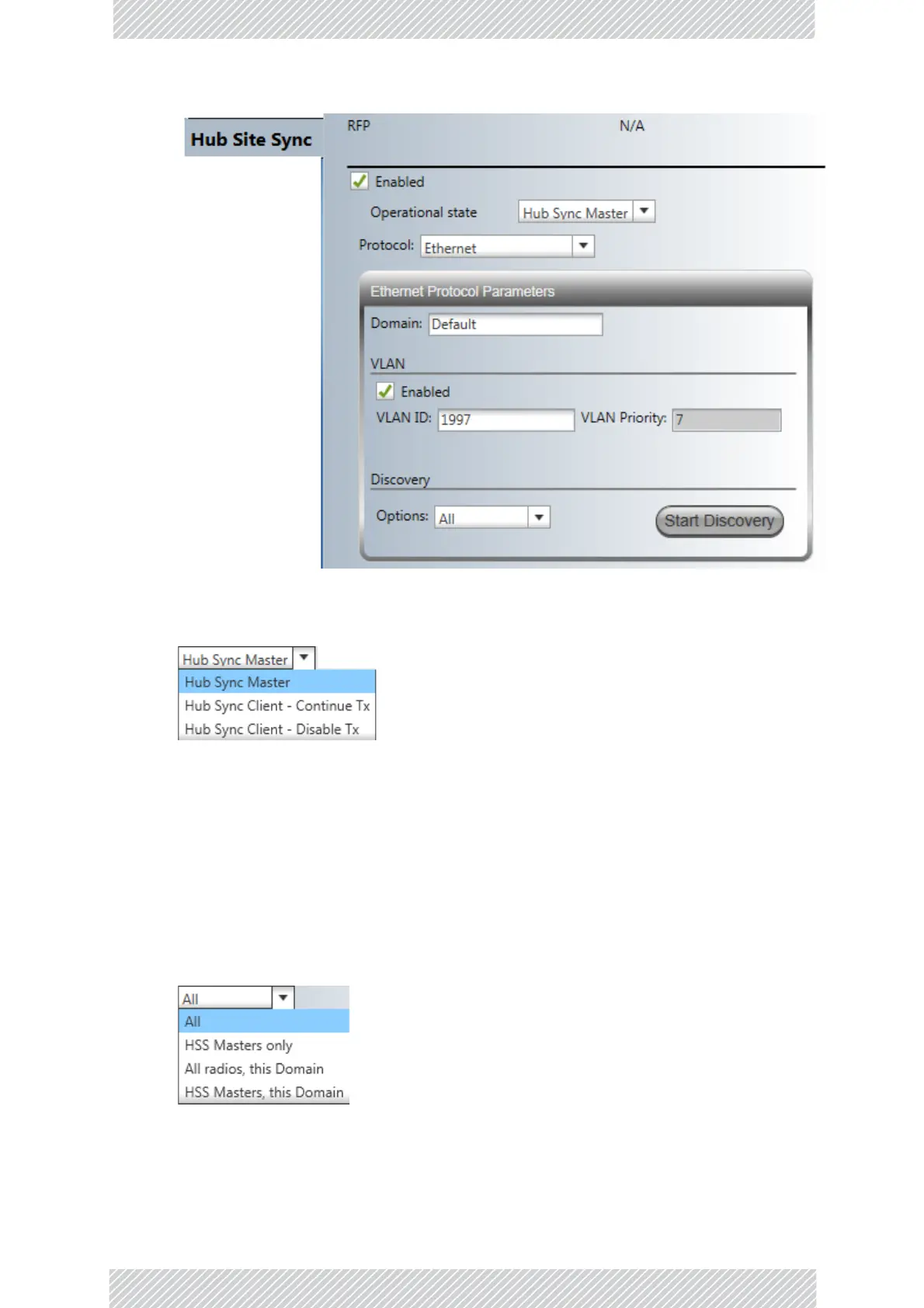

Figure11‐2:ExtendedProtocolParametersforHSSoE
4.LeavetheOperationstateasisatHubSyncMaster.Hereisthefullrangeofoptions:
Later,wewillneedoneoftheclientoptionsforthecollocatedsite.
5.TheProtocolshouldbeleftasisatEthernet.(Forthemoment,
therearenoother
options.)
6.TheDomainistheHSSdomainandreferstothecurrenthubsite.Itisusedto
distinguishbetweenhubsitestopreventinadvertentcollocationtoanover‐the‐air
unit.Wesetitasshown,toPM_Lab.
7.LeavetheVLANIDasisat
1977unlessthereissomereasontochangeit.
8.TheDiscoveryoptionsareasfollows:
Figure11‐3:
HSSdiscoveryfilters
9.ChooseAll.InourcaseitwillshowtheHBSasHSMandthecollocatedODUasHSC:
