RADWIN2000D+UserManual Release3.6.00 11‐7

ConfiguringtheRT‐A(HBS)asanHSM Chapter11

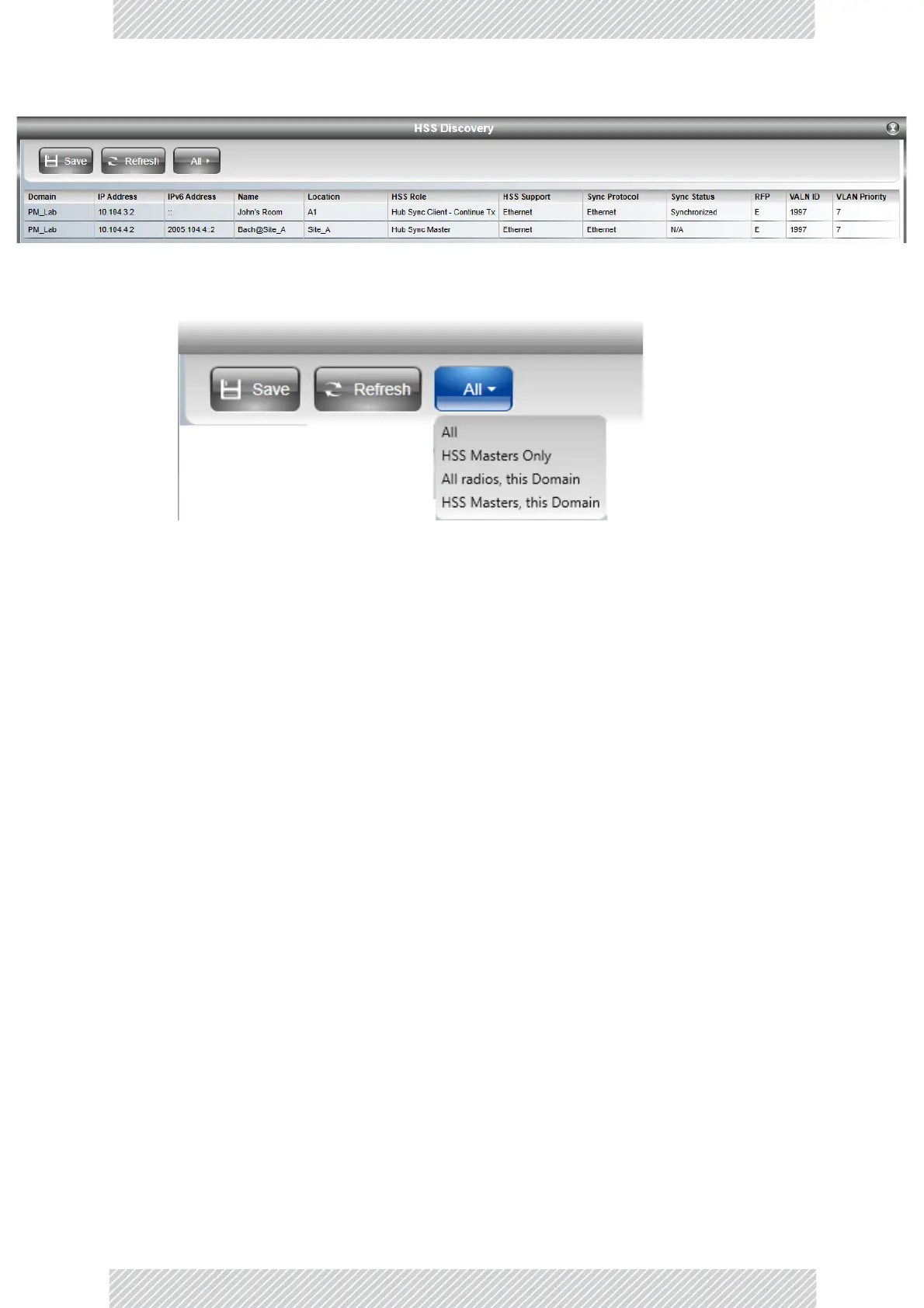

YoucansavetheresultstoatextfileorchangethedisplaytypefromtheDiscovery

windowtoolbar:

ThechoicesarethesameasforFigure 11‐3.

10.UsetheOKorApplybuttonstocommityourchanges.Hereistheoutcome:
