Radwin 2000 D+ - Figure 19-5 Calculation of

RADWIN2000D+UserManual Release3.6.00 19‐8
RunningtheLinkBudgetCalculator Chapter19
TheFademarginistheminimumrequiredforline‐of‐sight(LOS)conditions.For
degradedlinkconditions,alargerFademarginshouldbeused.Again,itisnotavail‐
ablewhenusingAdaptiveRate.
TheEIRPiscalculatedindBmandWatts.
8.TheRateitemmaybeusedforcalculatingtheLinkBudgetunderbestandworst
scenarios.ItisalwayssettomaximumunderAdaptiveRate.
9.Iftherequiredrangebetweenthetwolinksitesisknown,youmayenteritdirectly.
Alternatively,youmayenterthelatitudeandlongitudeofeachsiteinthelink,in
whichcasethedistancebetweenthemwillbecalculatedanddisplayed.

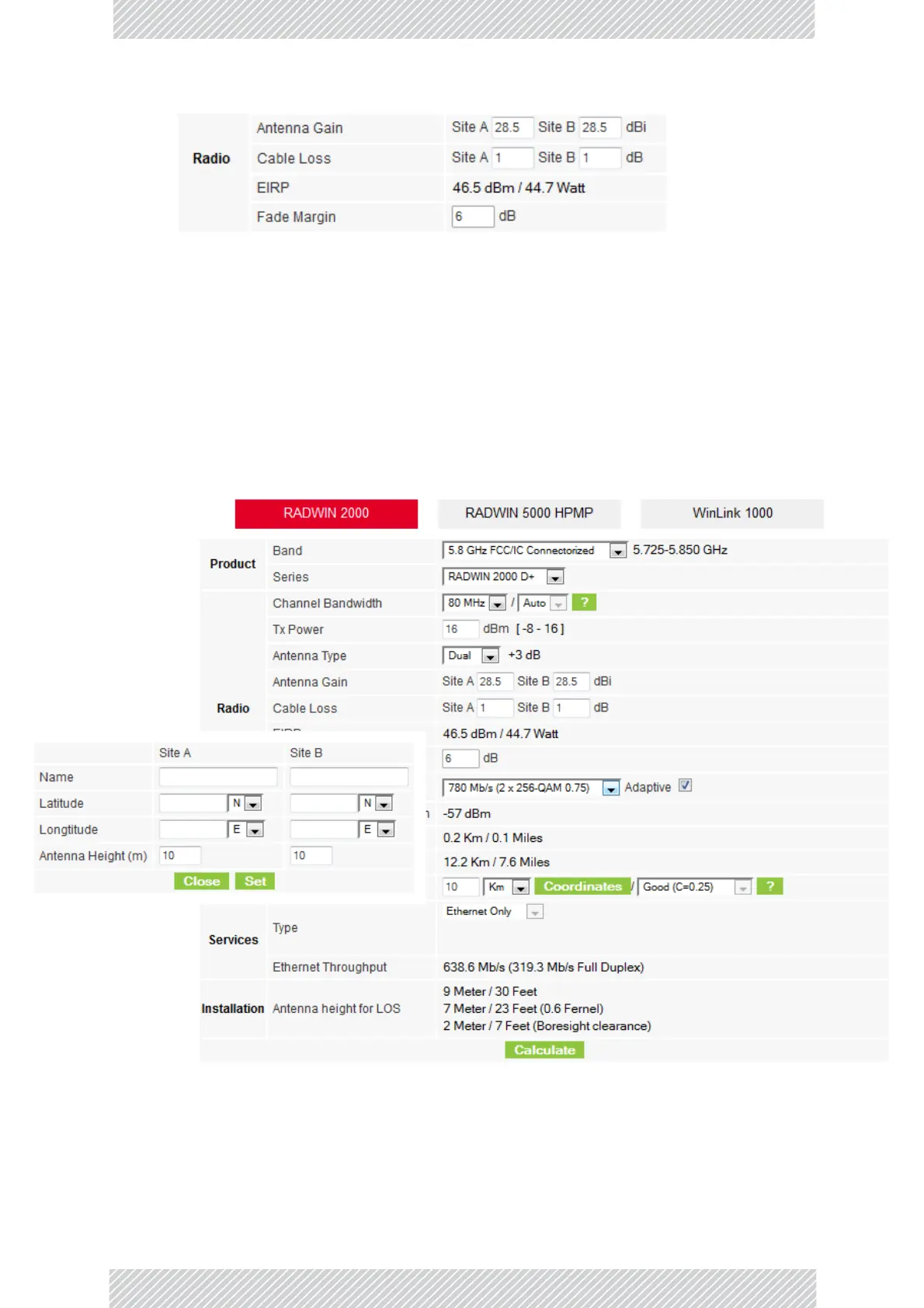

Figure19‐5:Calculationofdistancefromsitecoordinates
Ifforexample,weenter:
SiteA:41.1°Nlat75.2°WLong
SiteB:40.8°Nlat75.0°WLong
