RADWIN2000D+UserManual Release3.6.00 11‐8

ConfiguringtheRT‐A(HBS)asanHSM Chapter11

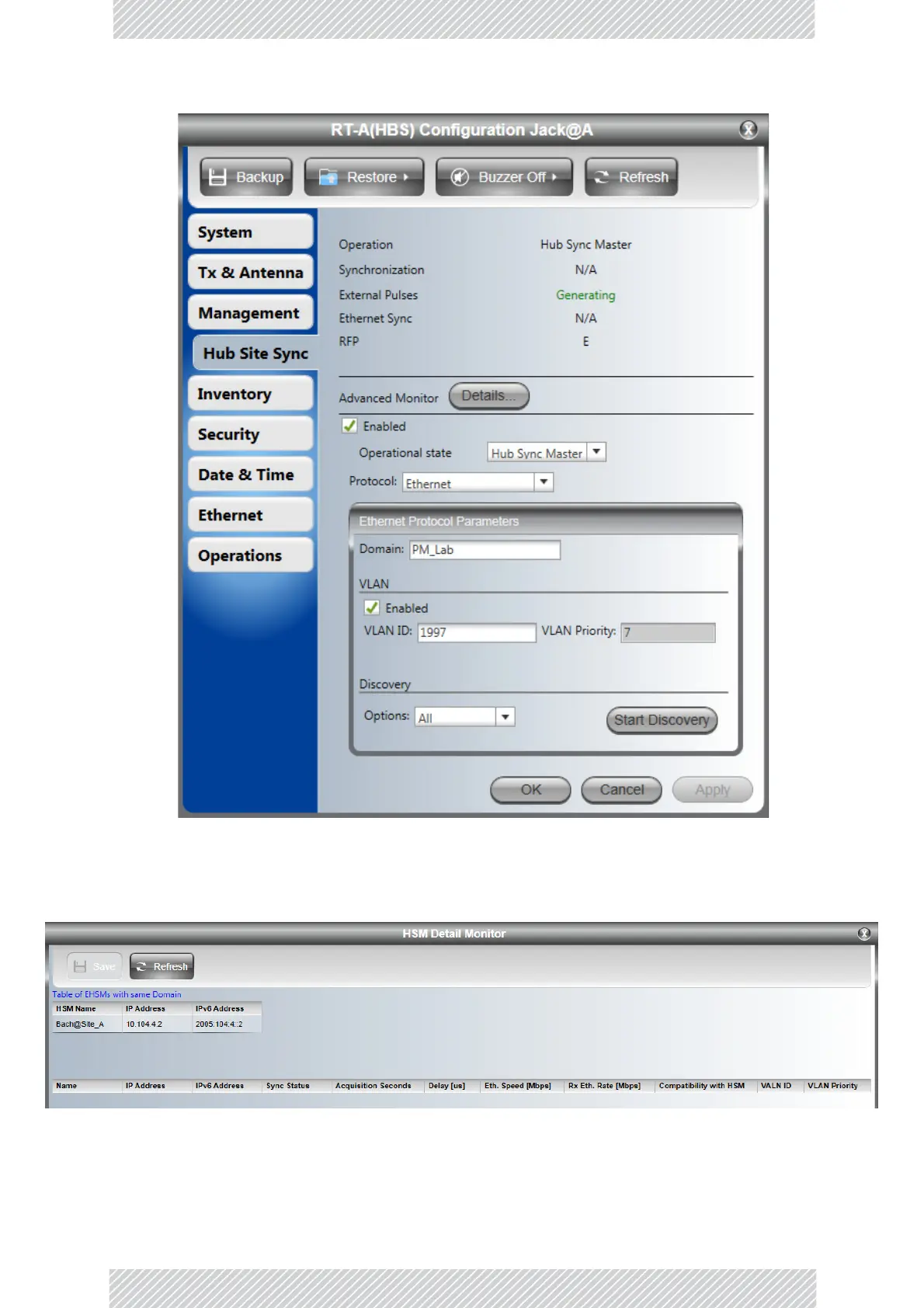

Figure11‐4:ConfigurationforHSM

11.ClicktheDetailsbutton.AtableofotherEthernetHSMswiththesamedomainis

displayed:

Thisisamistake: ThereshouldnotbeasecondHSMinthisdomain.Changeittobe

HSCandthedisplayisupdated:
