RADWIN2000D+UserManual Release3.6.00 6‐2

ActivatingtheRT‐A(HBS) Chapter6

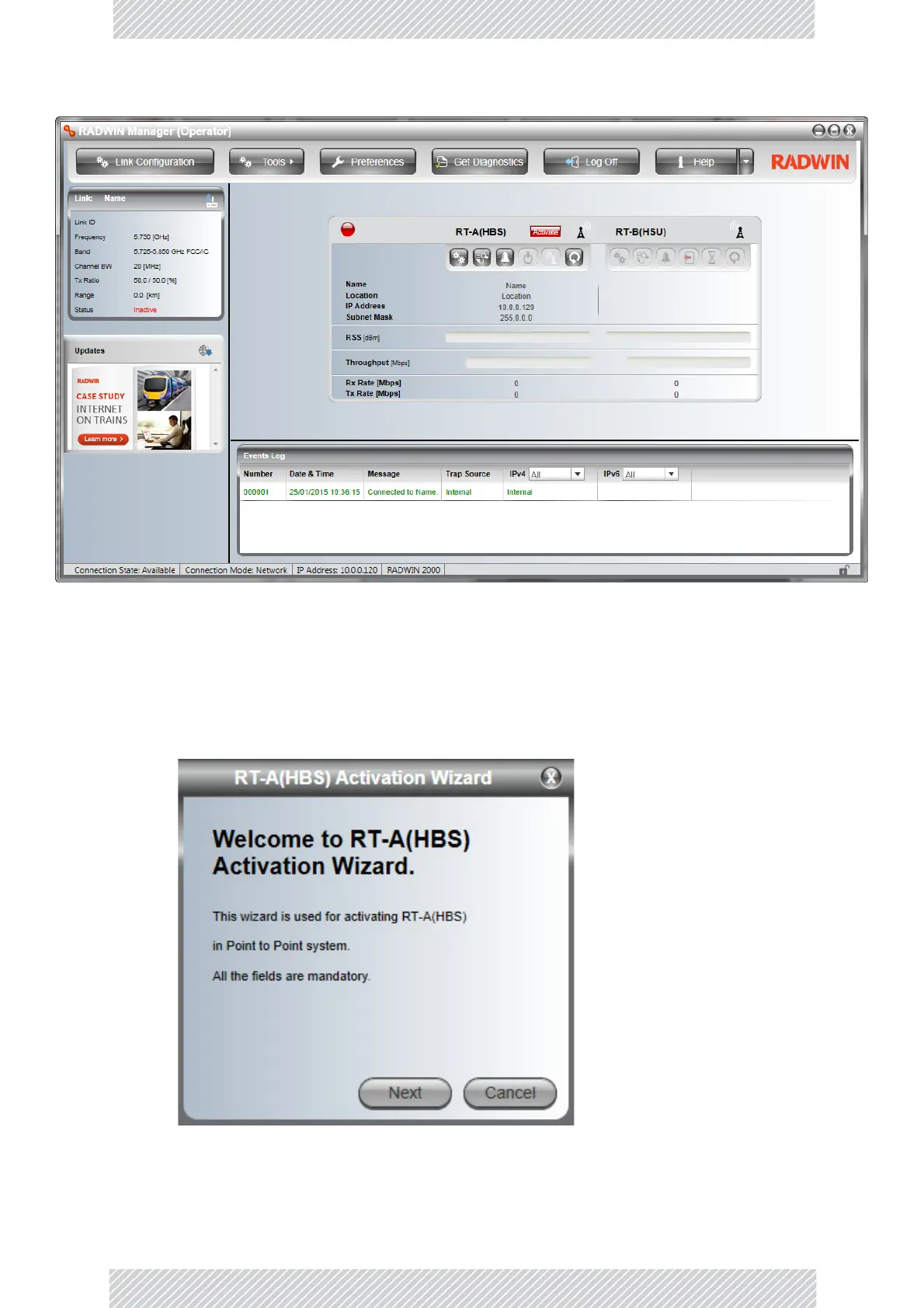

Figure6‐1:Mainwindowpriortolinkconfiguration

6.2.2ActivatingtheRT‐A(HBS)

 ToactivateaHBS:

1.ClicktheActivatebutton.TheActivationWizardopens.

2.ClickNext:
