RADWIN2000D+UserManual Release3.6.00 6‐3

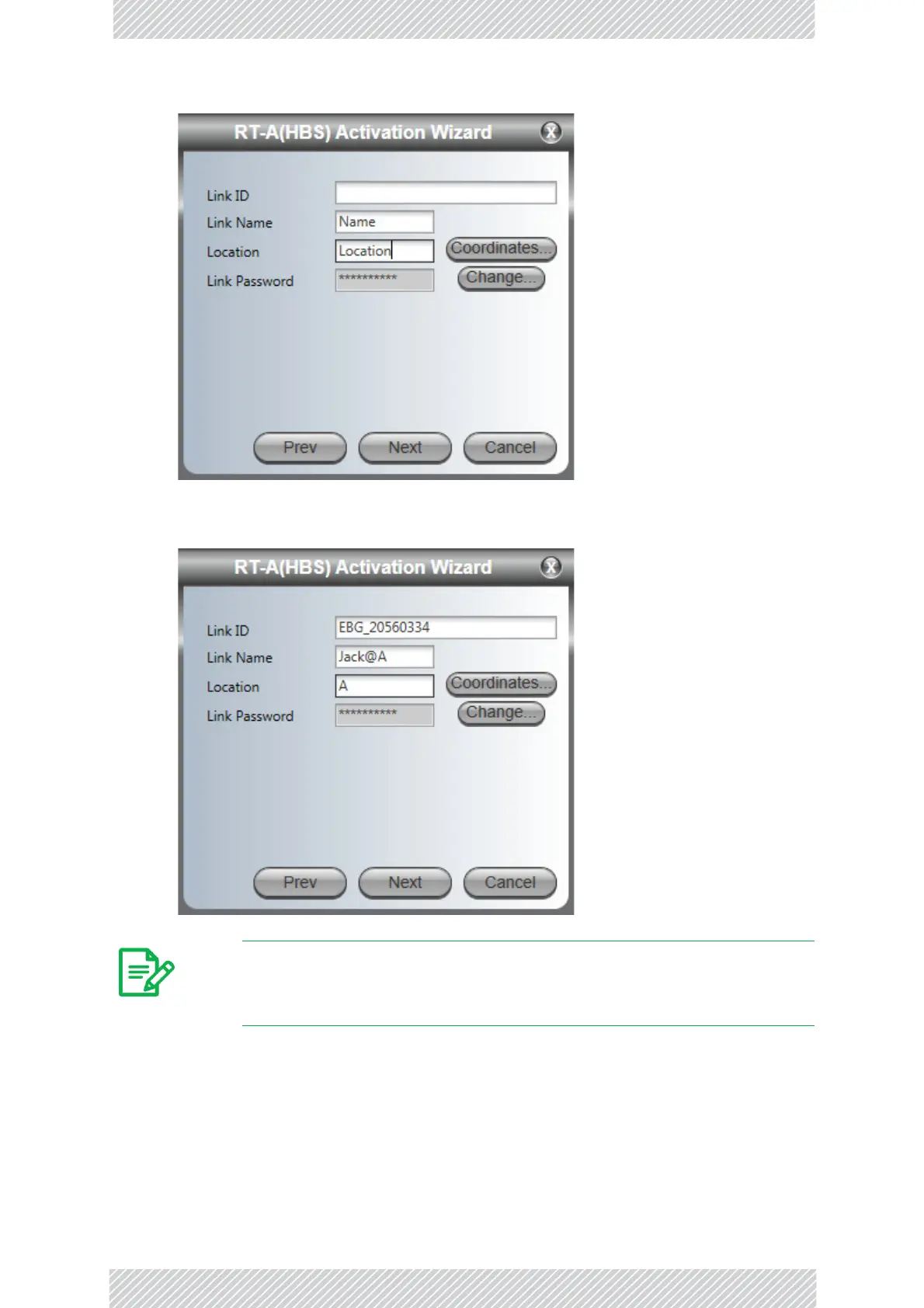

ActivatingtheRT‐A(HBS) Chapter6

EntertheSectorID,NameandLocation.Allfieldsaremandatory.Herearethe

entriesforourdemonstrationlink:

3.TheLinkPasswordmayalsobechangedbyclickingChang e:

Note

YoumayalsoignoretheCoordinatesbutton.
