RADWIN2000D+UserManual Release3.6.00 4‐14

InstallingaLink Chapter4



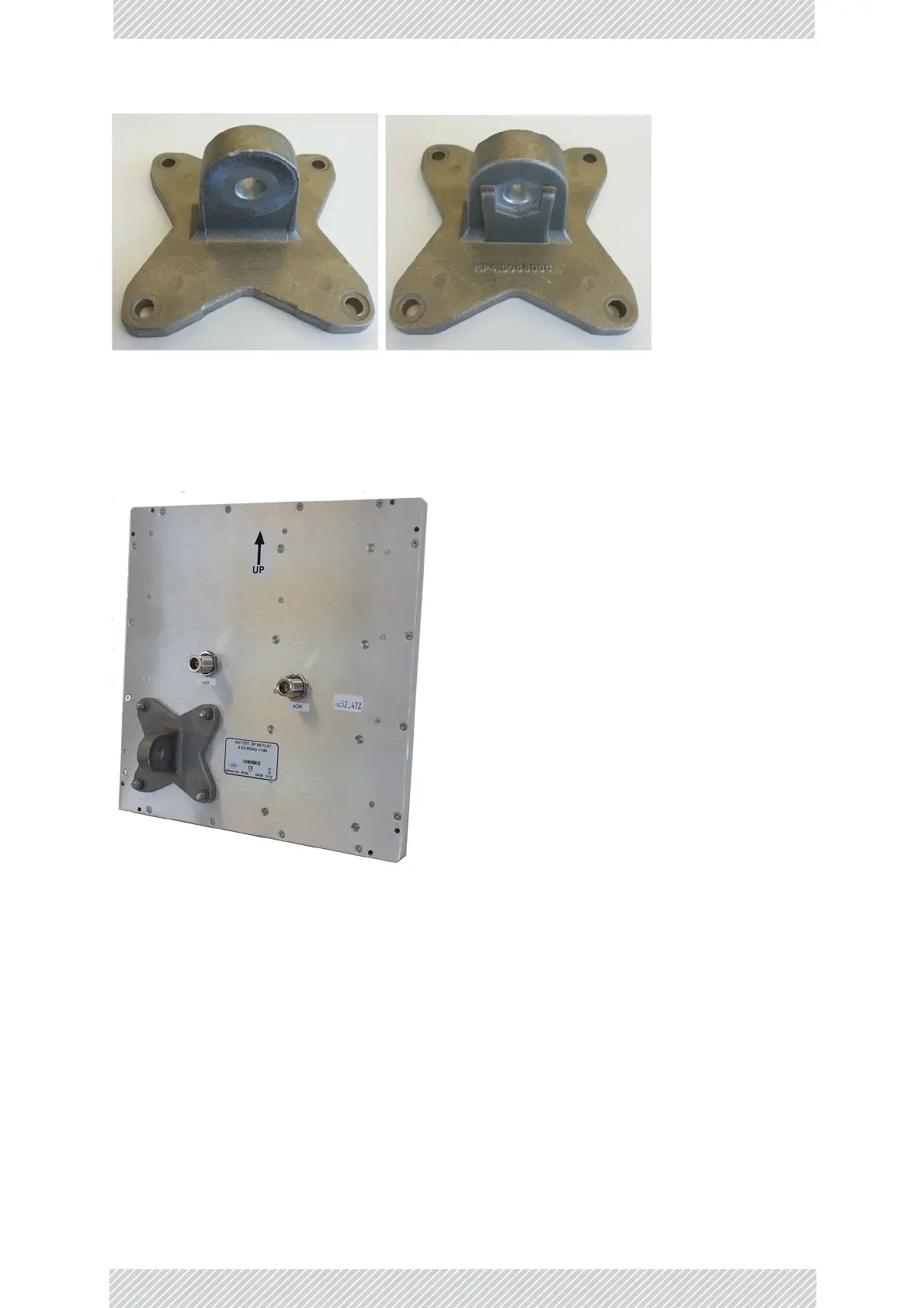

Figure4‐15:Flatpanelantennamountingkitadapter

ItismountedonapoleinexactlythesamemannerastheODUitselfusingtheadaptershown

inFigure 4‐15.Thelefthandviewinshowstheknurledsurfaceadjacenttothemountingkit

ear.Therighthandviewshowstherecessforthemountingkitholdingnut.

Figure4‐16:FlatPanelantenna‐rearwithmountingkitadapter

MountingExternalAntennasusingPoleClamps

ManyoftheantennasofthetypesshowninFigure 4‐8usethestandardmountingkit.Some

thirdpartyantennasusepoleclamps,similar tothoseshownbelow:
