RADWIN2000D+UserManual Release3.6.00 11‐5

ConfiguringtheRT‐A(HBS)asanHSM Chapter11

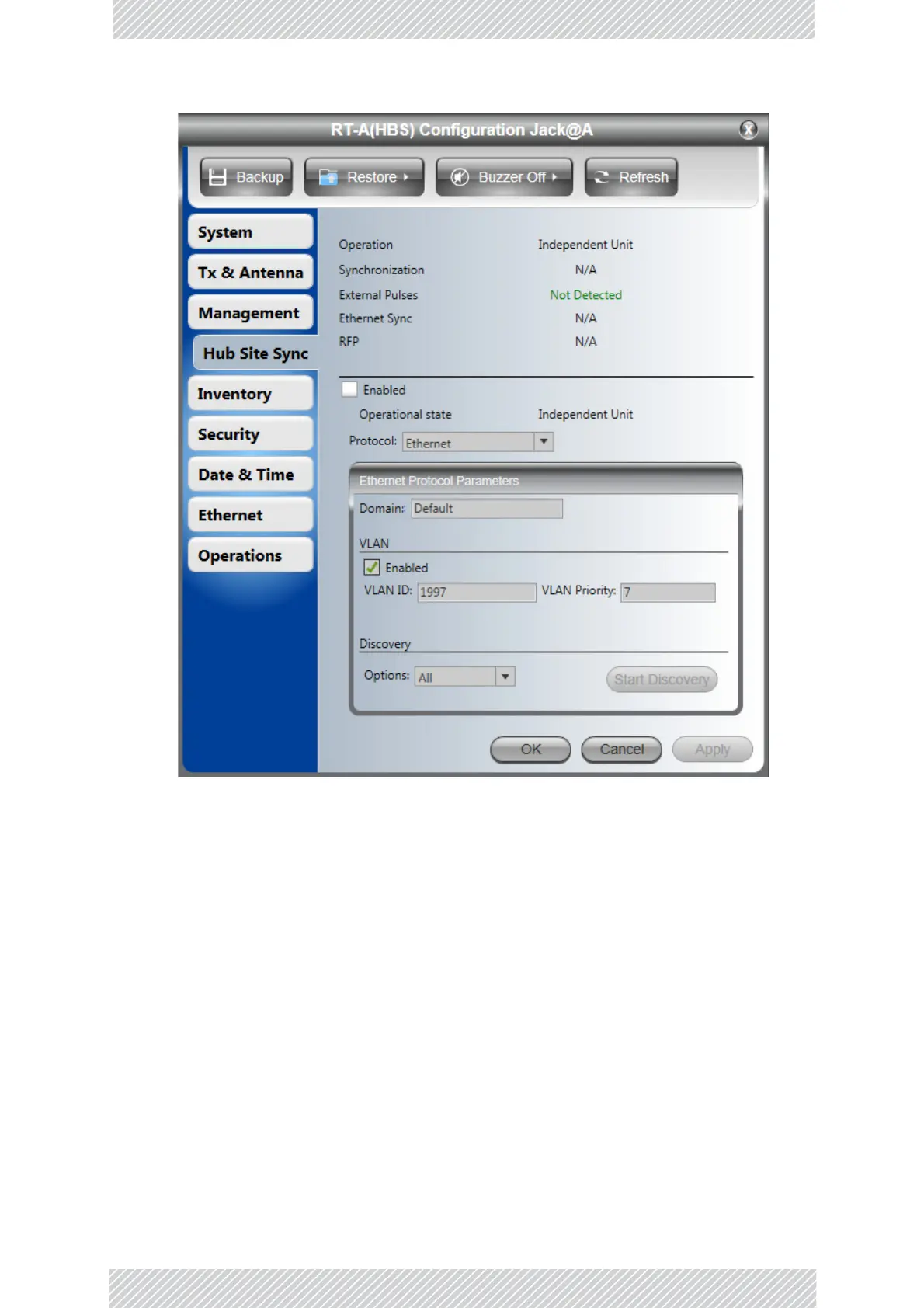

Figure11‐1:HSSSettingswindow

3.ChecktheEnabledbox.ThegrayedoutbottompartofthewindowinFigure 11‐1is

enabled.
