RADWIN2000D+UserManual Release3.6.00 8‐6

PerformanceMonitoring Chapter8

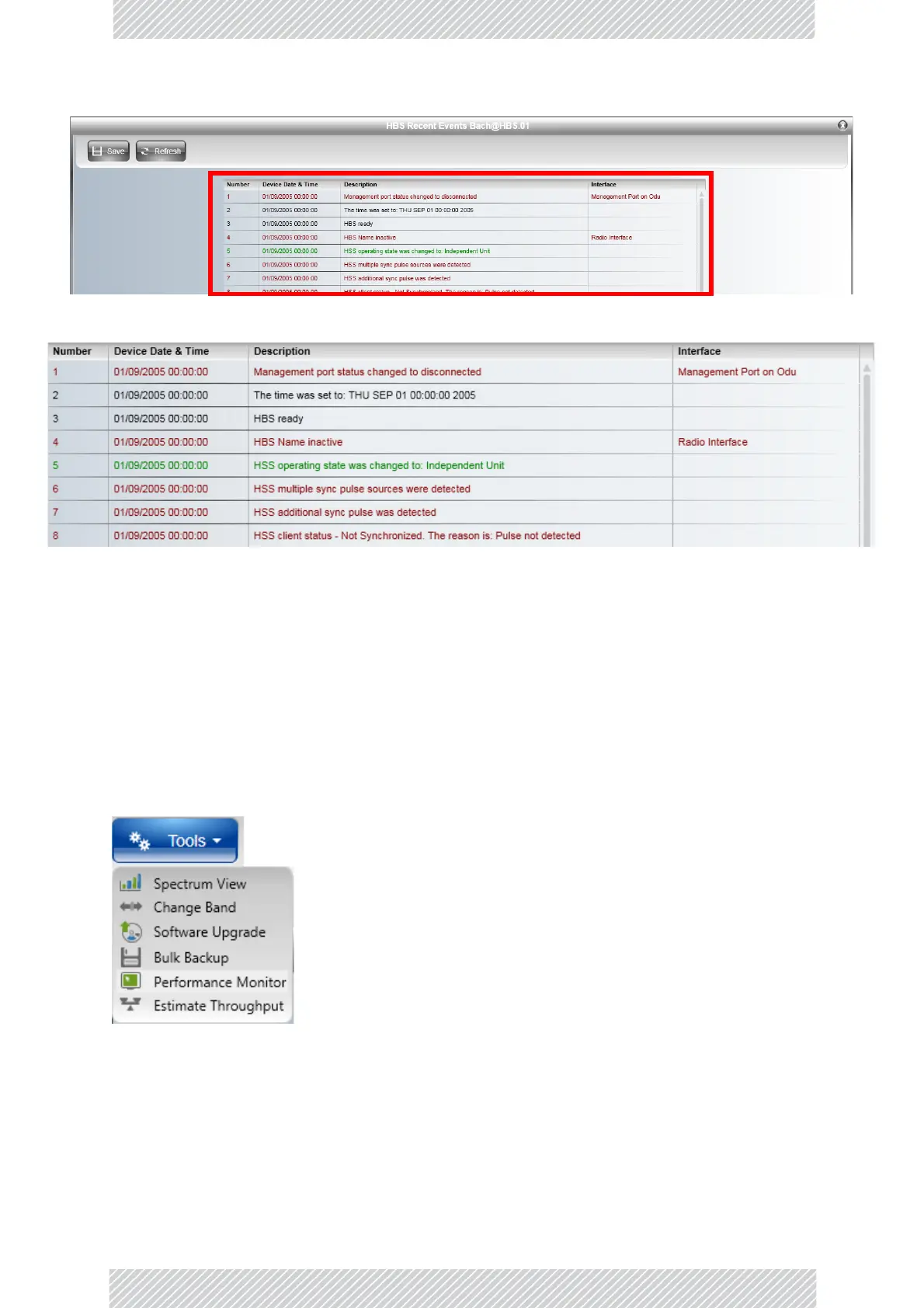

Hereisamorereadableenlargementofthetablearea:

Theleftbuttonmaybeusedtosavethereporttoafile.

8.4PerformanceMonitoring

8.4.1ObtainingReports

RADWIN2000D+PerformanceMonitoringconstantlymonitorstrafficovertheradiolinkand

collectsstatisticsdatafortheairinterfaceandEthernetports.Itdoessocontinuously,even

whentheRADWINManagerisnotconnected.Thereportisobtainedfromthe Toolstab:

Theon‐screenandgeneratedreportshavethesamegener alformats,butthereare

differencesinwhatisreported.

ThePerformanceMonitoringwindowoffersthefollowingbuttonmenu:
