RADWIN2000D+UserManual Release3.6.00 19‐11
RunningtheLinkBudgetCalculator Chapter19

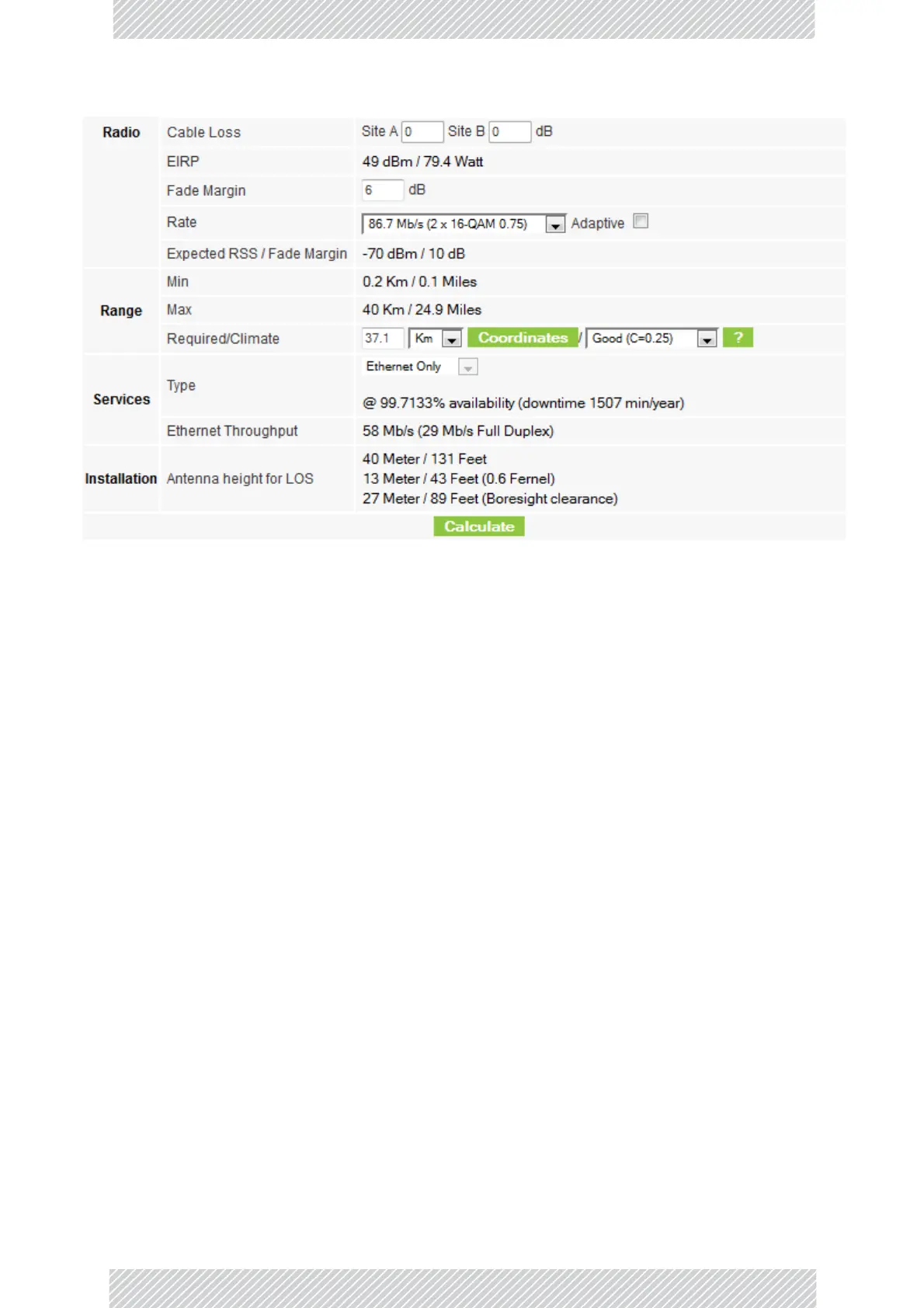

Figure19‐9:LBC‐Resultssection
TheExpectedPerformanceparametersarecalculatedanddisplayed:
•ExpectedRSS‐theexpectedRSSthattheRADWINManagershowswhentheRADW IN
2000D+ODUsareoptimallyaligned
•ServicesType‐Ethernetonly
•EthernetRate‐maximumthroughputavailableforthechosenparametercombination
• AntennaheightforLOS–theminimumantennaheightrequiredforline‐of‐sightopera‐
tion.Itisthesumoftheheightrequiredforboresightclearanceduetotheearth’scur‐
vatureplusthe heightrequiredtocleartheFresnelzone
Iftheexpectedperformanceisnotsuitable foryourapplication,trydifferentparametersand
repeatthecalculation.
