RADWIN2000D+UserManual Release3.6.00 10‐6

SectorConfigurationandHSS Chapter10

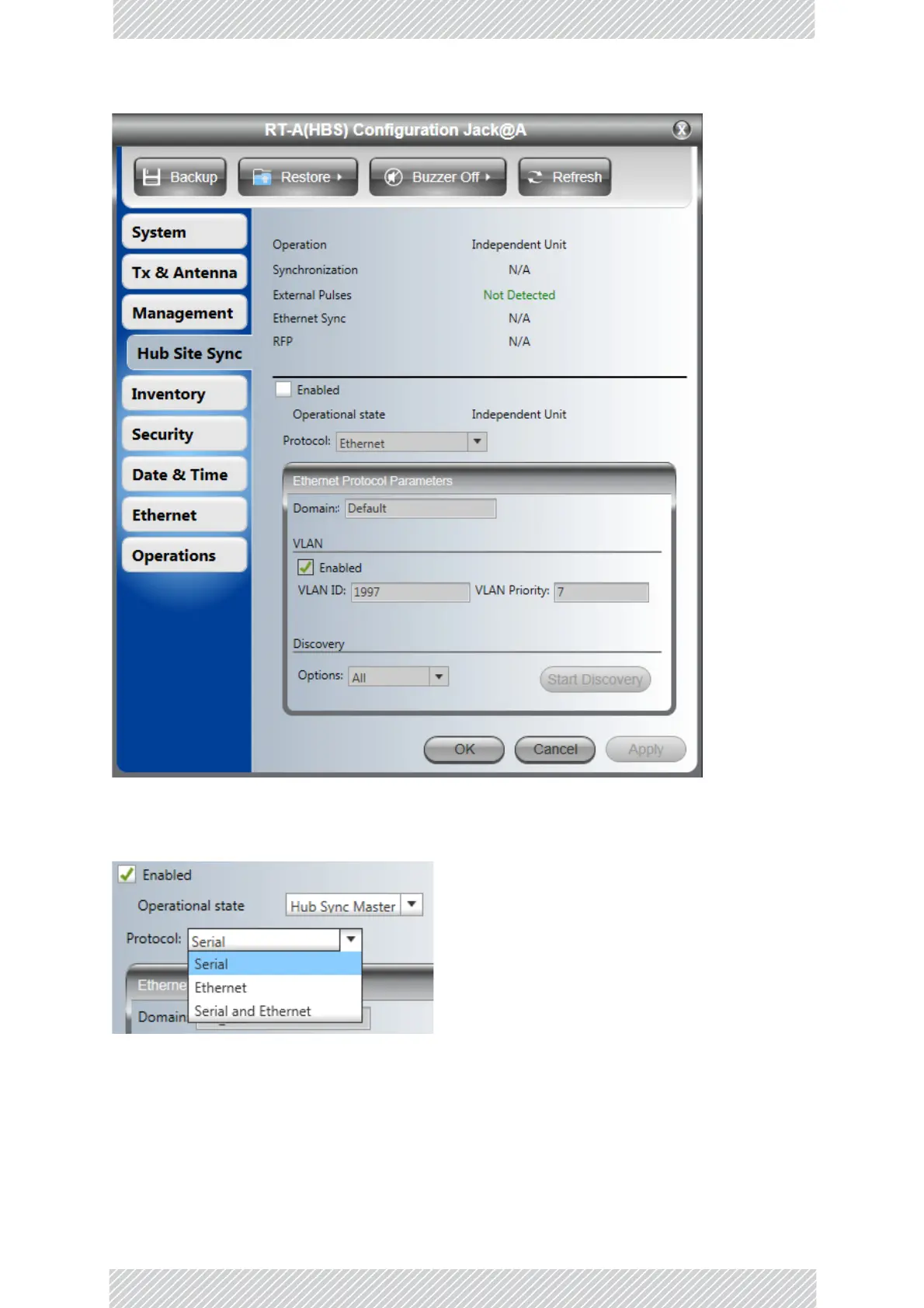

Figure10‐6:HSSSettingswindow

IfyouclicktheEnabledbox andchooseSerialorSerialandEthernet:

Thecentraldisplay(withOperationalstateopened)willlooklikethis:
