RADWIN2000D+UserManual Release3.6.00 13‐4

UpgradinganInstalledLink Chapter13

6.TheradiobuttonsontherightdetermineshowyourODUsshouldbereset.Bearin

mindthatontheonehand,aresetinvolvesaserviceinterruption,butontheother

hand,thesoftwareupgradewillnotbecomeeffectiveuntilaftertheresetiscarried

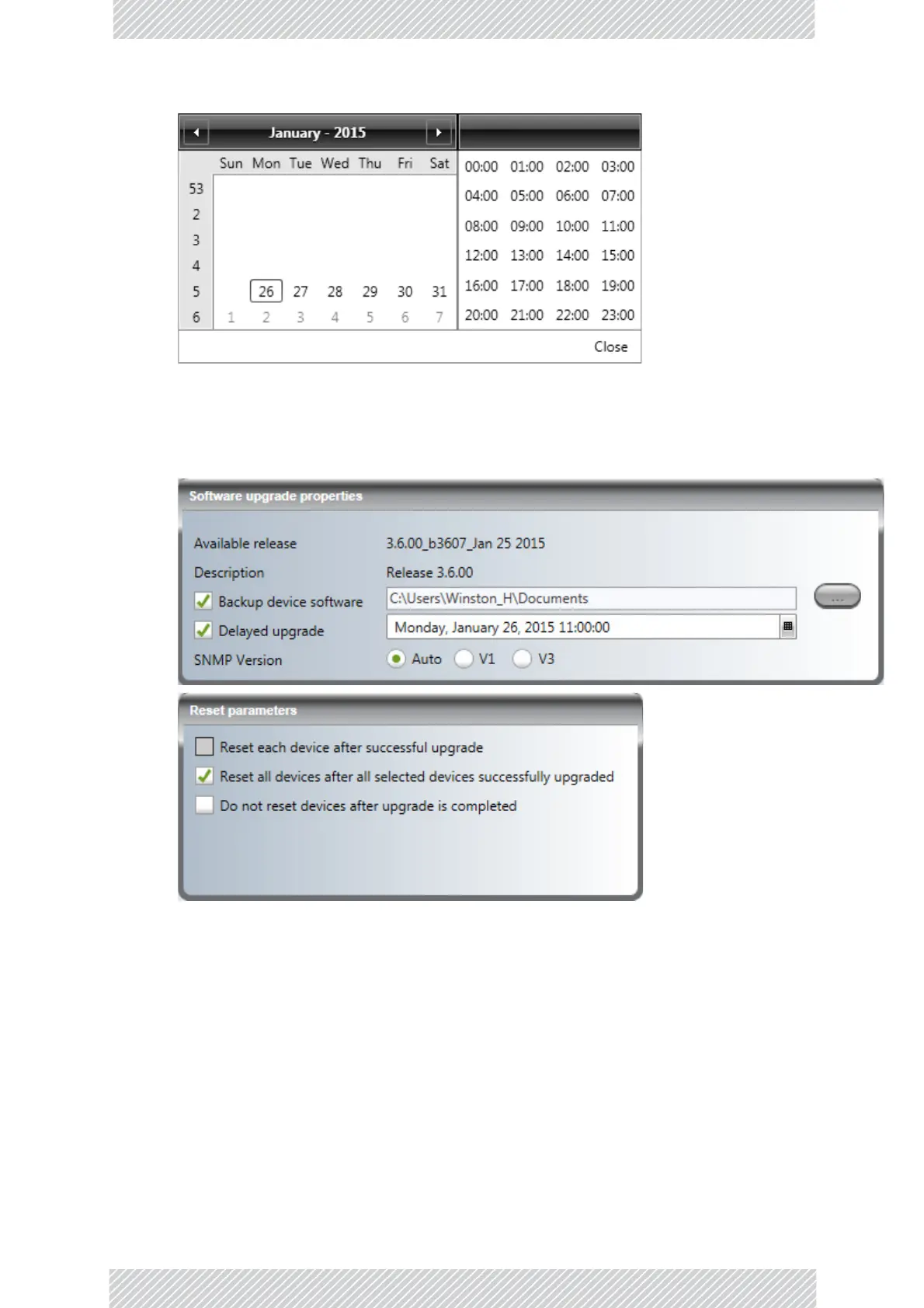

out.Hereisatypicaldelayedupgradescenario:

7.ClickStartUpgradetocommencetheprocess.Foranimmediateupgradeyouwill be

abletoobservetheupgradeprogressfromthegreenprogressbars:
