RADWIN2000D+UserManual Release3.6.00 21‐6

TheToolBar Chapter21

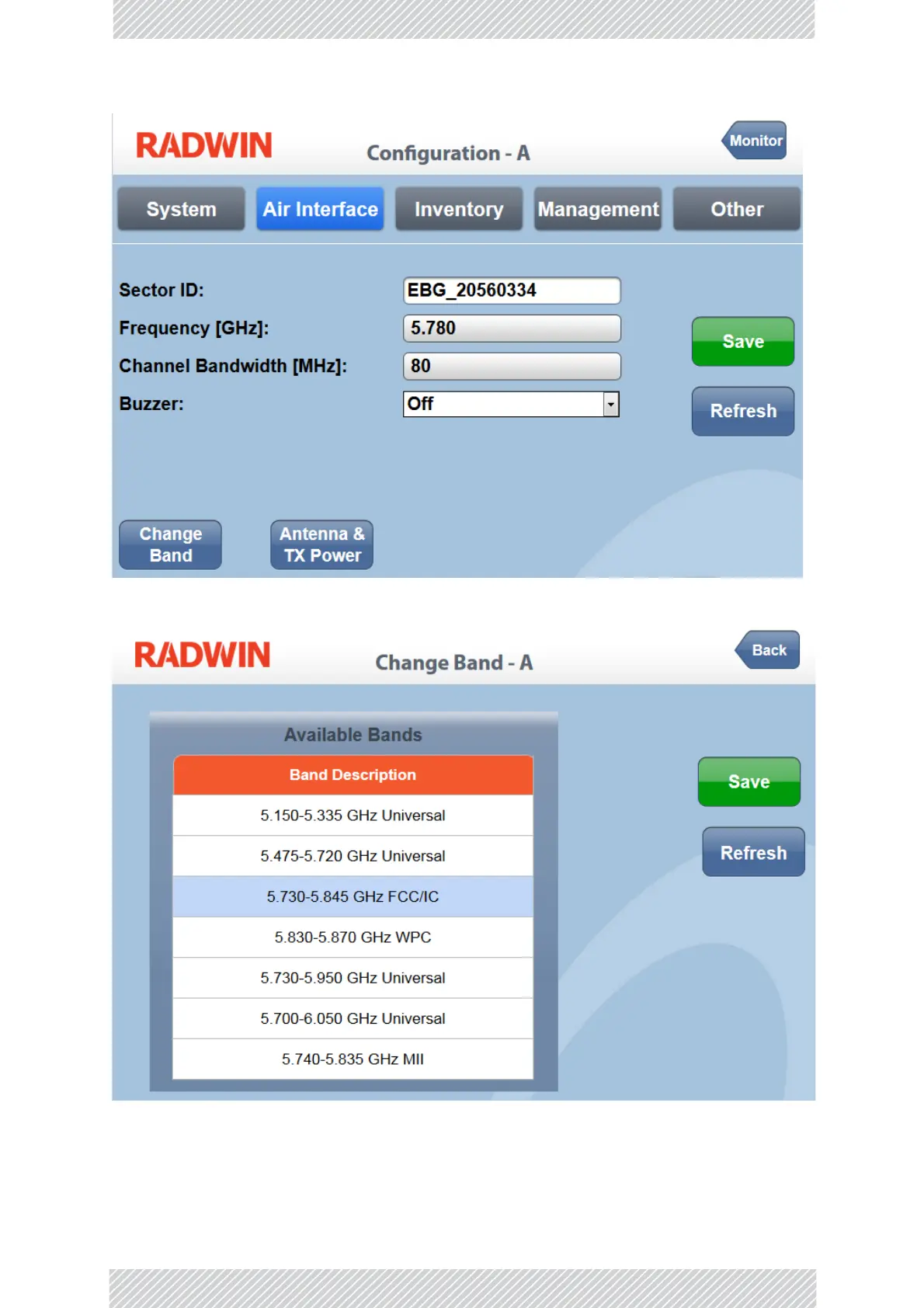

YoucanusetheChangeBandbuttontoopenthefollowingdisplay:

TheAntenna&TxPowerbuttonopensupthefollowingwindow:
