RADWIN2000D+UserManual Release3.6.00 21‐10

Events Chapter21

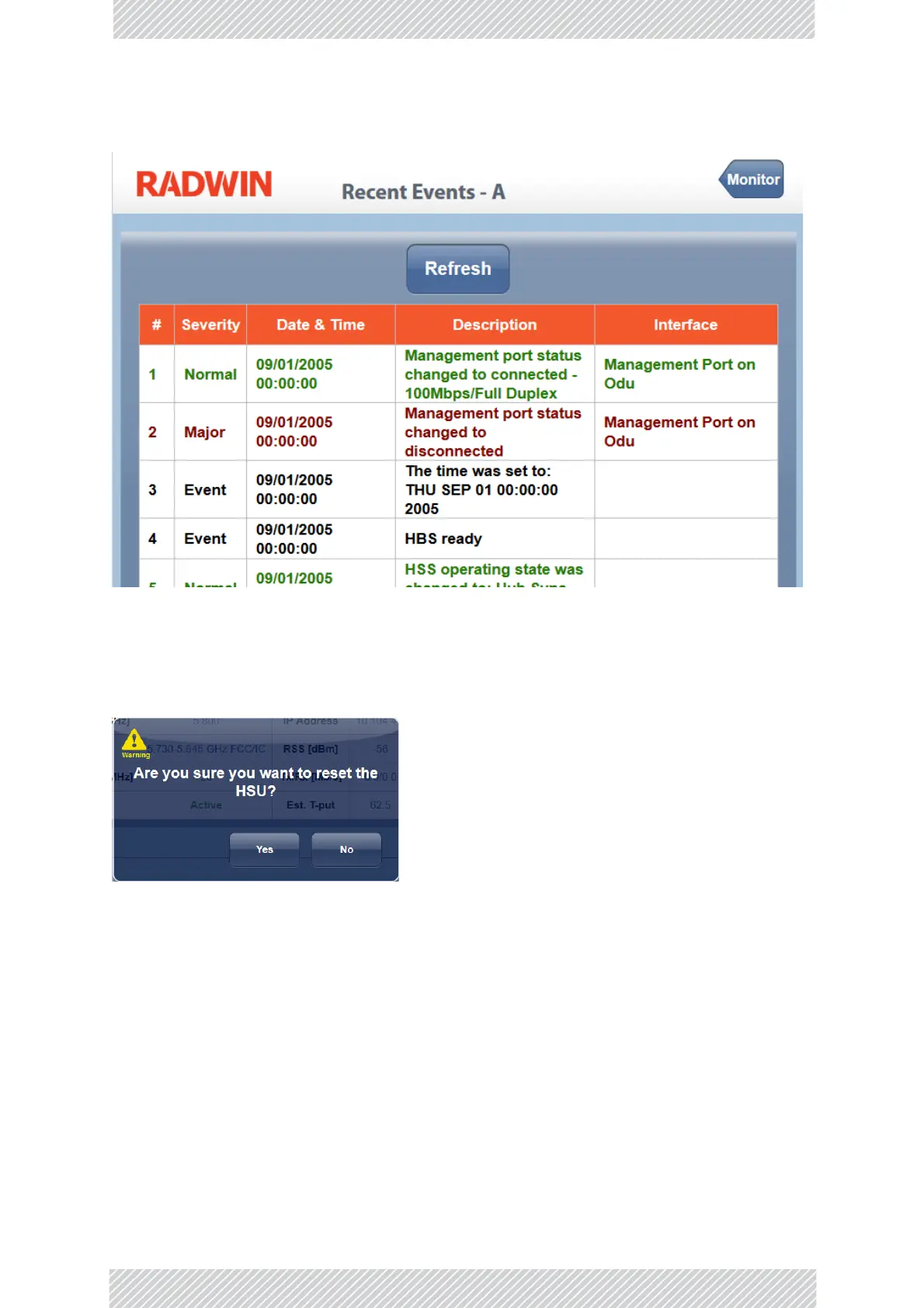

21.9.3Events

TheRecentEventListisdisplayed :

21.9.4Reset

UsethisbuttontoresettheODU.Asusual,foranyactioncausingasyncloss youwilbeask ed

toconfirmtheaction:

21.10SiteManagement‐SlaveODU

SlaveODUsitemanagementisthesameasthatfortheMasterODU.
