RADWIN2000D+UserManual Release3.6.00 6‐13

BasicConfigurationforOperations Chapter6

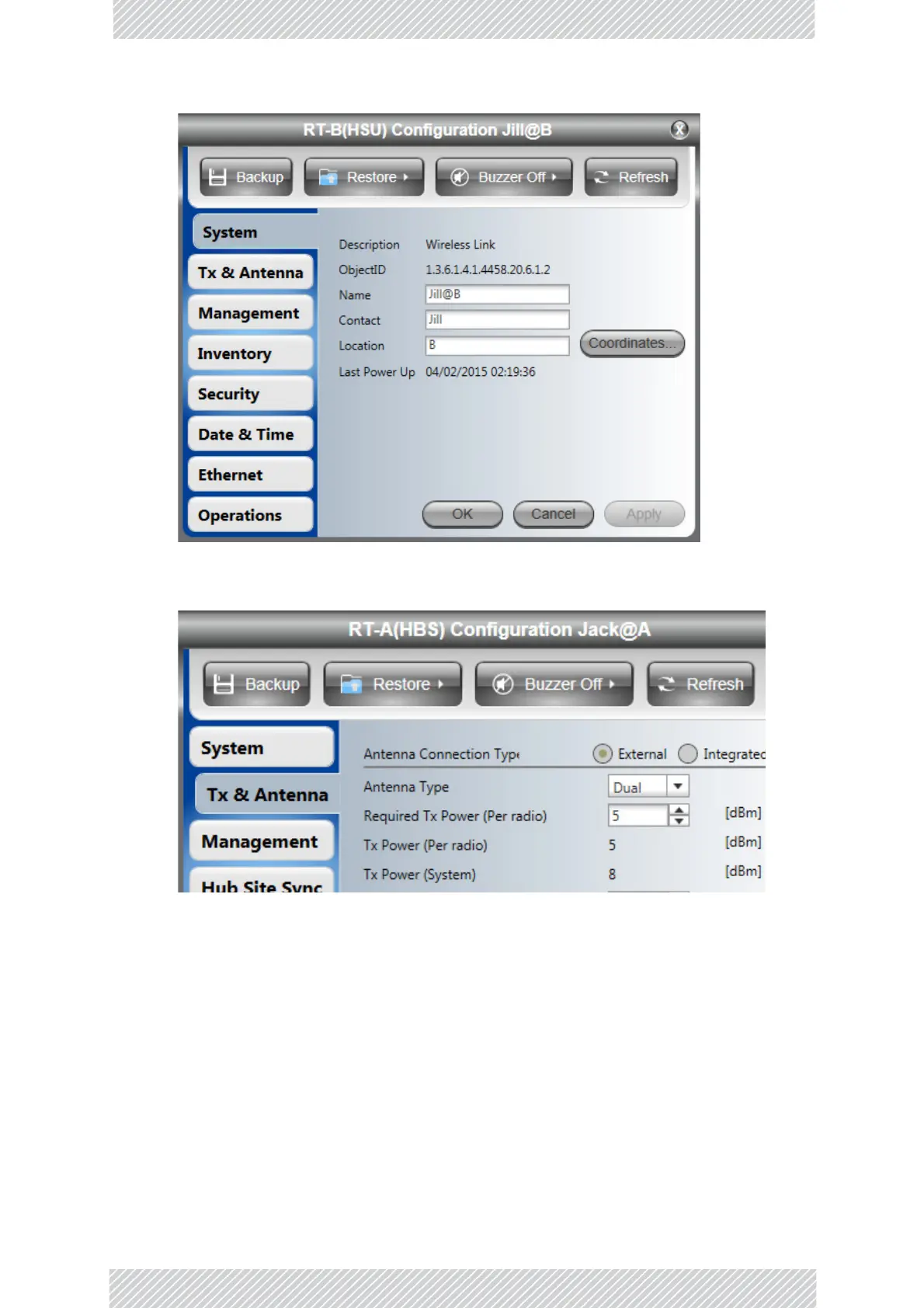

2.IntheTx&Antennatab,ensurethatTxPowerissetappropriately.Forour

demonstrationlink,wereduceitto5dBm:

3.OpentheManagementtabandsettheIPaddress,SubnetMaskandDefa ult 

Gatewaytotheirrequiredvalues.Hereareours:
