RADWIN2000D+UserManual Release3.6.00 7‐4

HubSiteSync(RT‐A(HBS)Only) Chapter7

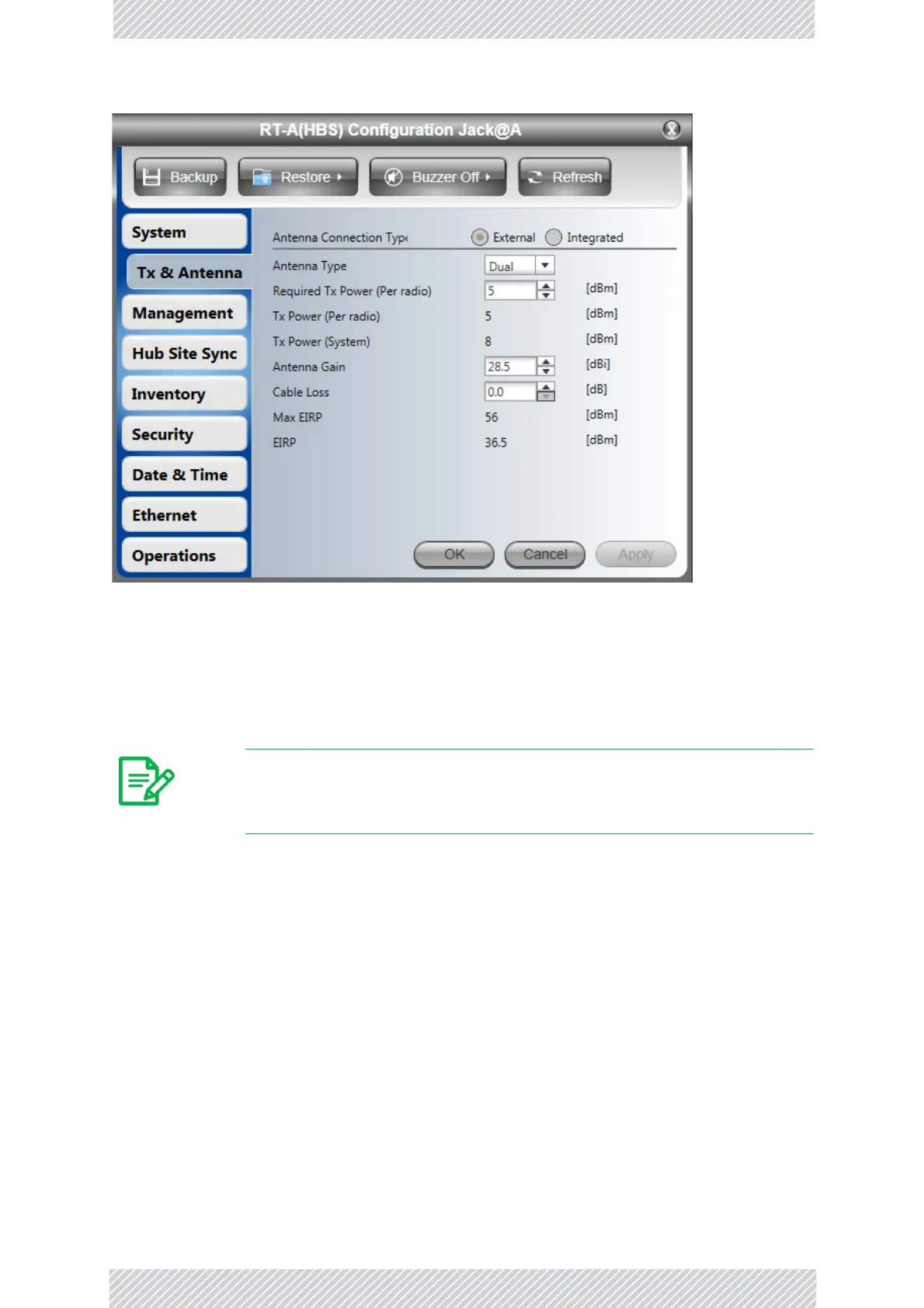

ChangingtheTxandAntennaparameterswilltakeimmediateeffectwithoutservice

interruption.

7.3.3HubSiteSync(RT‐A(HBS)Only)

SeeHubSiteSynchronizationfordetailsaboutconfiguringHSS.

7.3.4Management

IPAddresses

WealreadyusedthemanagementtabtosettheIPaddressesfortheRT‐B(HSU).Ifyousetthe

IPandrelatedaddressescorrectly,youwillnotneedtochangethem.Hereisa“classic”IPv4

configuration:

Note

RADWIN2000D+RT‐B(HSU)scannotbecollocated.
