RADWIN2000D+UserManual Release3.6.00 7‐6

Management Chapter7

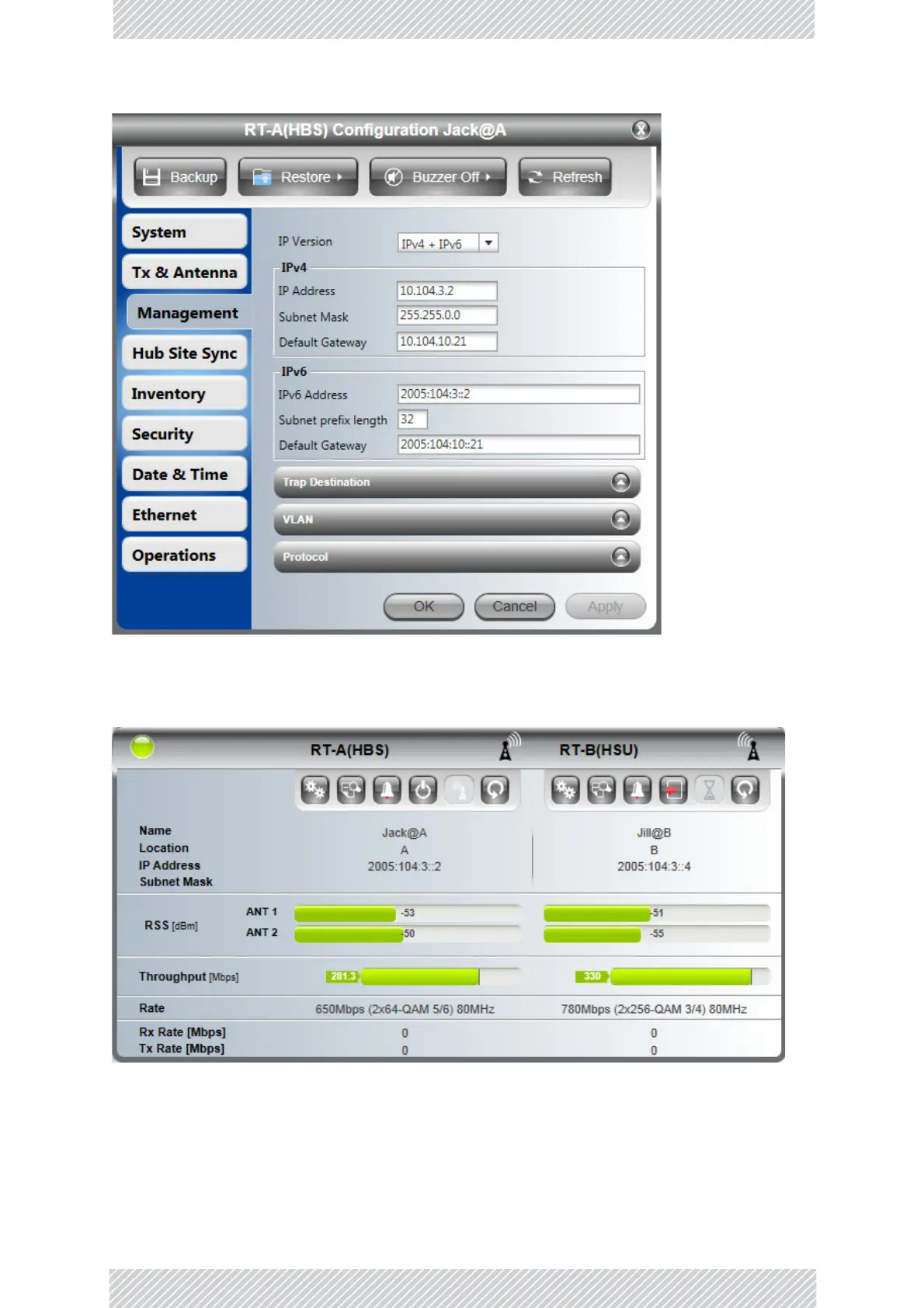

UsingbothIPversionsisusefulinconjunctionwithapplicationsthatdonotfullysupportIPv6.

herearetheresultsofsettingIPv6addressesforbothsitesandenablingShowIPtoIPv6in

Preferences|Monito r:
