RADWIN2000D+UserManual Release3.6.00 7‐14

Management Chapter7

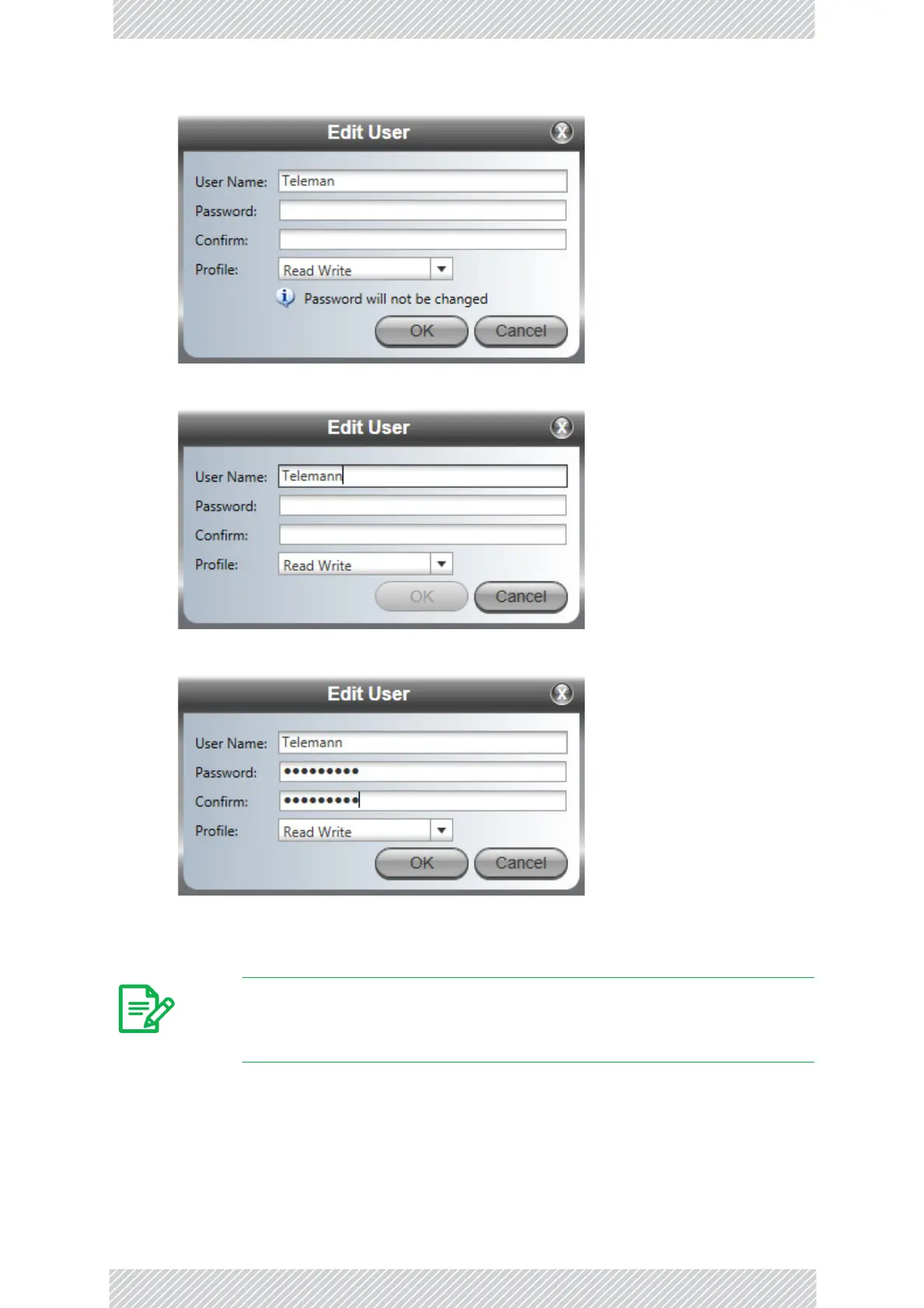

3.Correctthespellingofthename:

4.Enterandconfirmtheuser’spassword:

5.ClickOKtofinish.ThechangewillbereflectedinthedisplayofFigure 7‐7.

6.Usethesamemethodtochangetheuser’sprofile.

LoggingonasaSNMPv3User

 TologoffasuseradminandlogonasaReadWriteprofileuser(Vivaldi):

1.Hereisthedefaultlog‐ondialog:

Note

Passwordsareneverdisplayedascleartext.Ifauserlooseshispassword,

theonlywaythatthesituationcanbecorrectedistodeletetheusername

andre‐createthesameusernamewithanotherpassword.
