Installation and Service manual
Compass STD 22
Compass STD 22 Compact
120
Edition: Feb. 17, 2006
3646/110 --233.DOC010302
Serial
no.

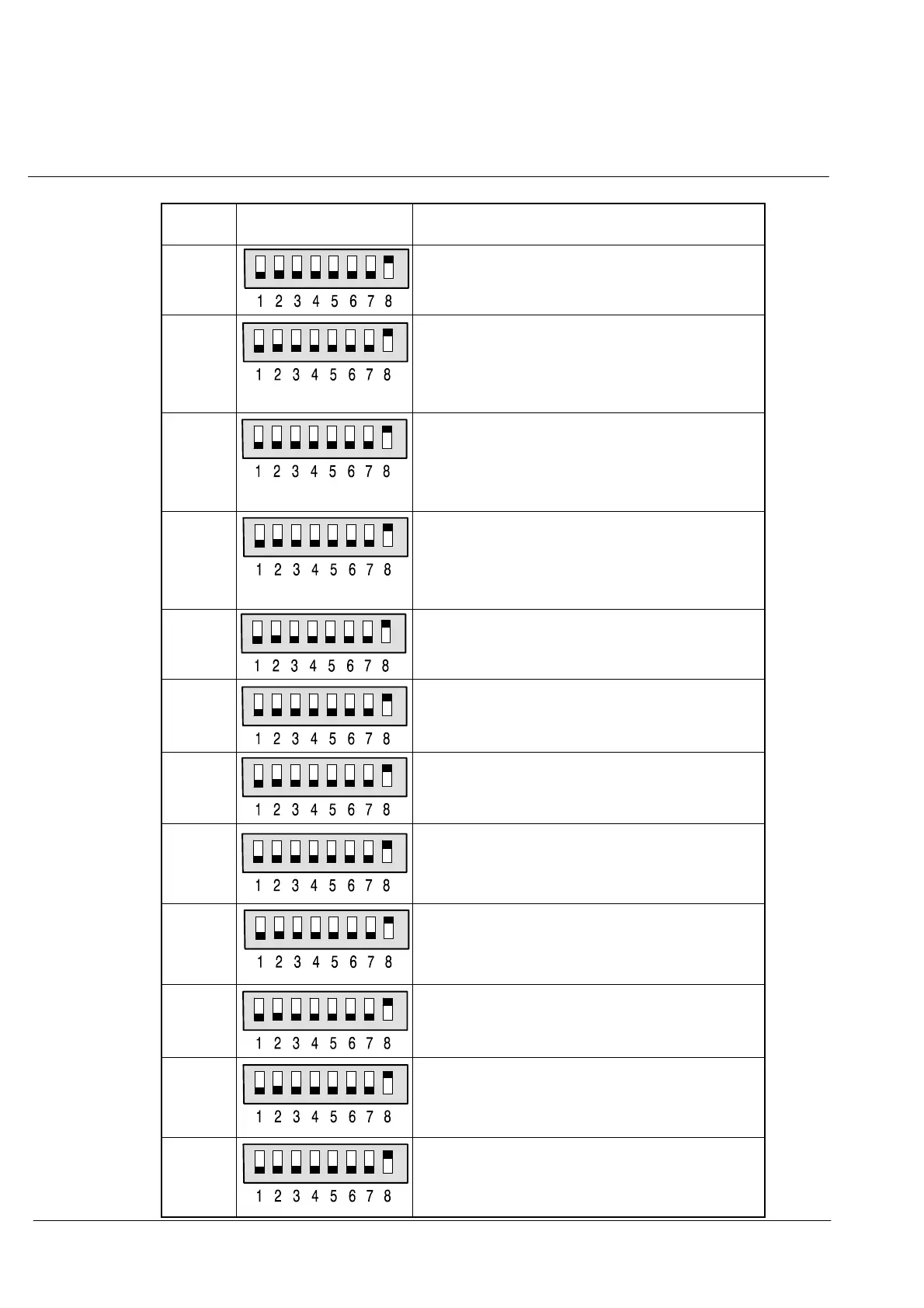

DIP switch setting Function
12
Step 14
Indicate operating voltage (73VAC)
Nominal Value: <65.0...79.0V
12
Step 15
Indicate DC operating voltage for 400Hz
(78 -- 79.5VDC)
Nominal value: 78V
Tolerance: <77.0...79.5V
12
Step 16
Indicate gyro supply 54--56V
EFF
Nominal value:
During “start--up” 45...60V
During operation 53...58V
12
Step 17
Indicate gyro current 160--250mA
EFF
Nominal value:
During “start--up” 150...400mA
During operation 120...350mA
12
Step 18
Indicate operating voltage (13--17VDC)
Nominal value: <15.5V
12
Step 19
Indicate internal operating v oltage 15VDC
(14.5--15.5VDC)
12
Step 20
Indicate internal operating v oltage 24VDC
(23--35 VDC)
12
Step 21
Indicate pump voltage 24V 50Hz
(24V +/-- 1V, 50 Hz)
Nominal value: 23.5...24.5V
12
Step 22
Indicate pump current (150mA)
Nominal value: 140...180mA
12
Step 23
Indicate pick--up voltage
(coded) <5mV
12
Step 24
Indicate program number and software
version of the program for the
microprocessor on the sensor PCB.
12
Step 25
Indicate program number and software
version of the program for the
microprocessor on the Power Supply PCB.
