Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
121
Edition: Feb. 17, 2006 3646/110 --233.DOC010302
Serial
no.

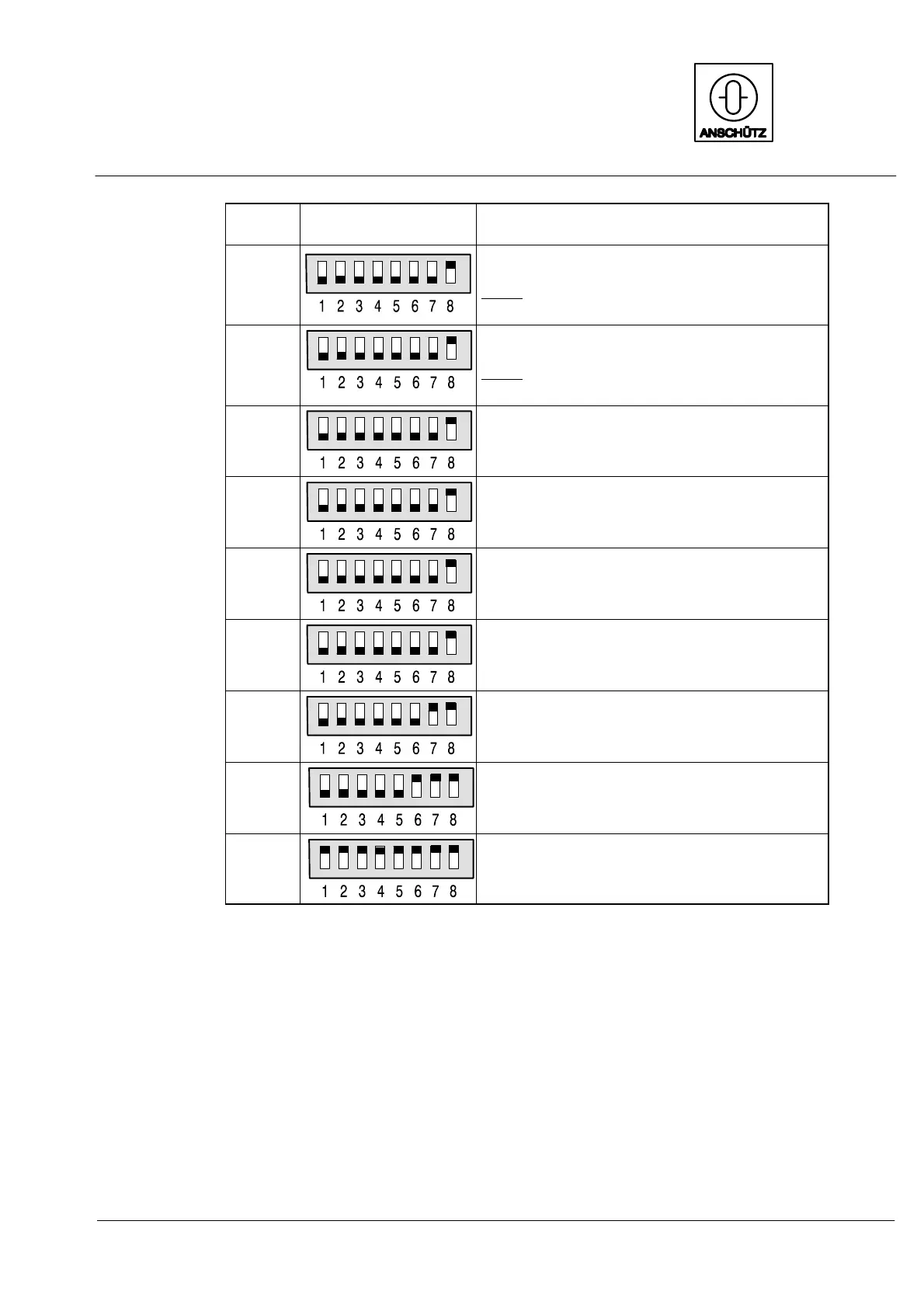

DIP switch setting Function
12
Step 26
Indicate program number and software
version of the program for microprocessor
MC 1
on the outer sphere PCB.
12
Step 27
Indicate program number and software
version of the program for microprocessor
MC 2
on the outer sphere PCB.
12
Step 28
Operating time (years)
12
Step 29
Operating time (hours)
12
Step 30
Future purpose
12
Step 31
Future purpose
13 Error logbook
SEC
1to35
DIP switch settings, Speed Error Correction
(SEC) (for development purposes only see
section 5.1.5)
14 Delete:
-- Error logbook complete
-- Operating hours (years and hours)
