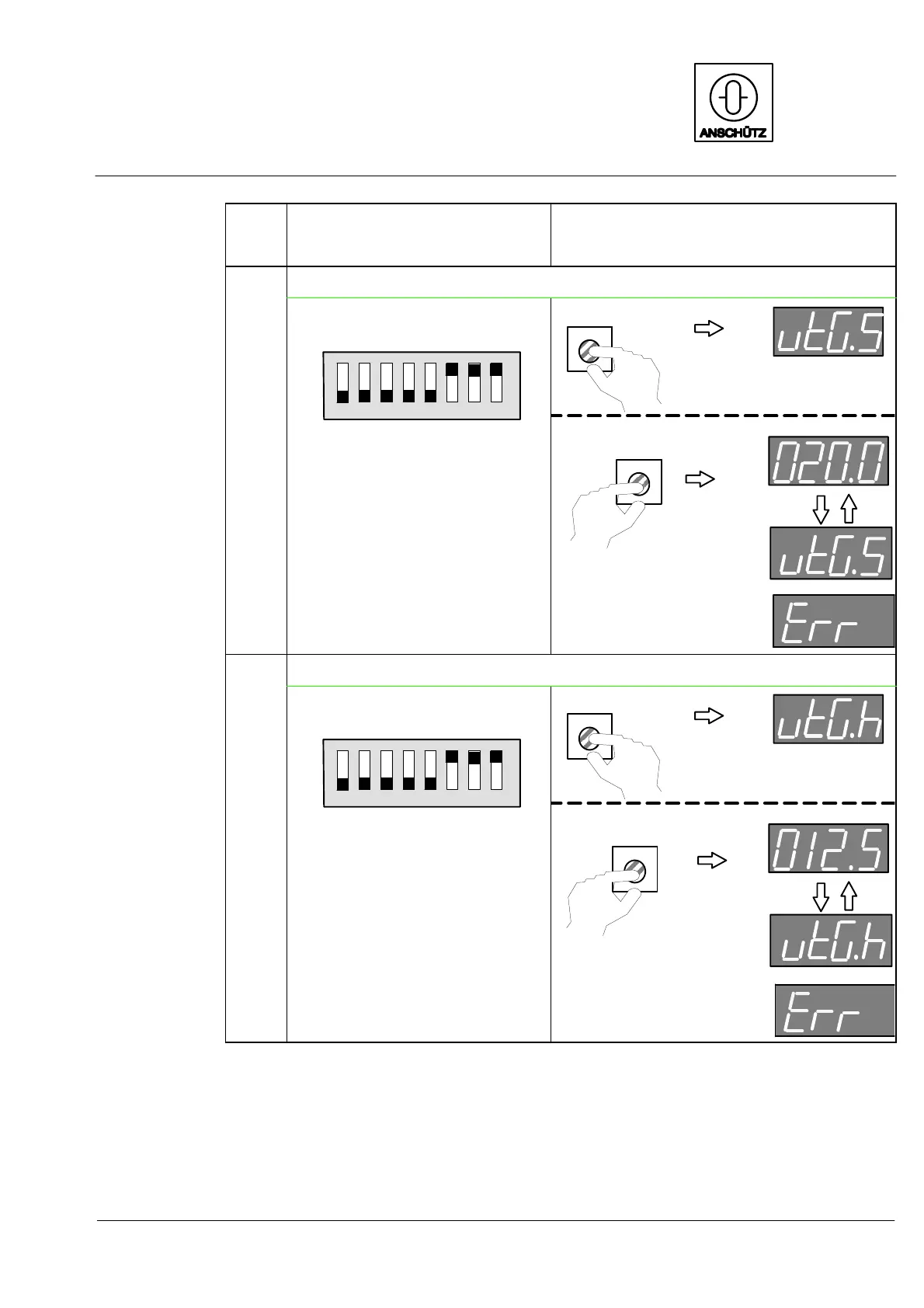

Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
169
Edition: July 1, 2005 3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications
13 vtG.S = Speed from GPS--receiver telegram (speed over ground).
12345678
OPEN
Switch B37 (DIP switch)
B39
12x
B38
No, or faulty data from GPS--
receiver
(vTg-- telegram)
.
14 vtG.h = Course value from GPS--receiver telegram
12345678
OPEN
Switch B37 (DIP switch)
B39
13x
B38
No, or faulty data from GPS--
receiver (vTg-- telegram).
