Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
Compass STD 22 Compact
168
Edition: July 1, 2005
3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications

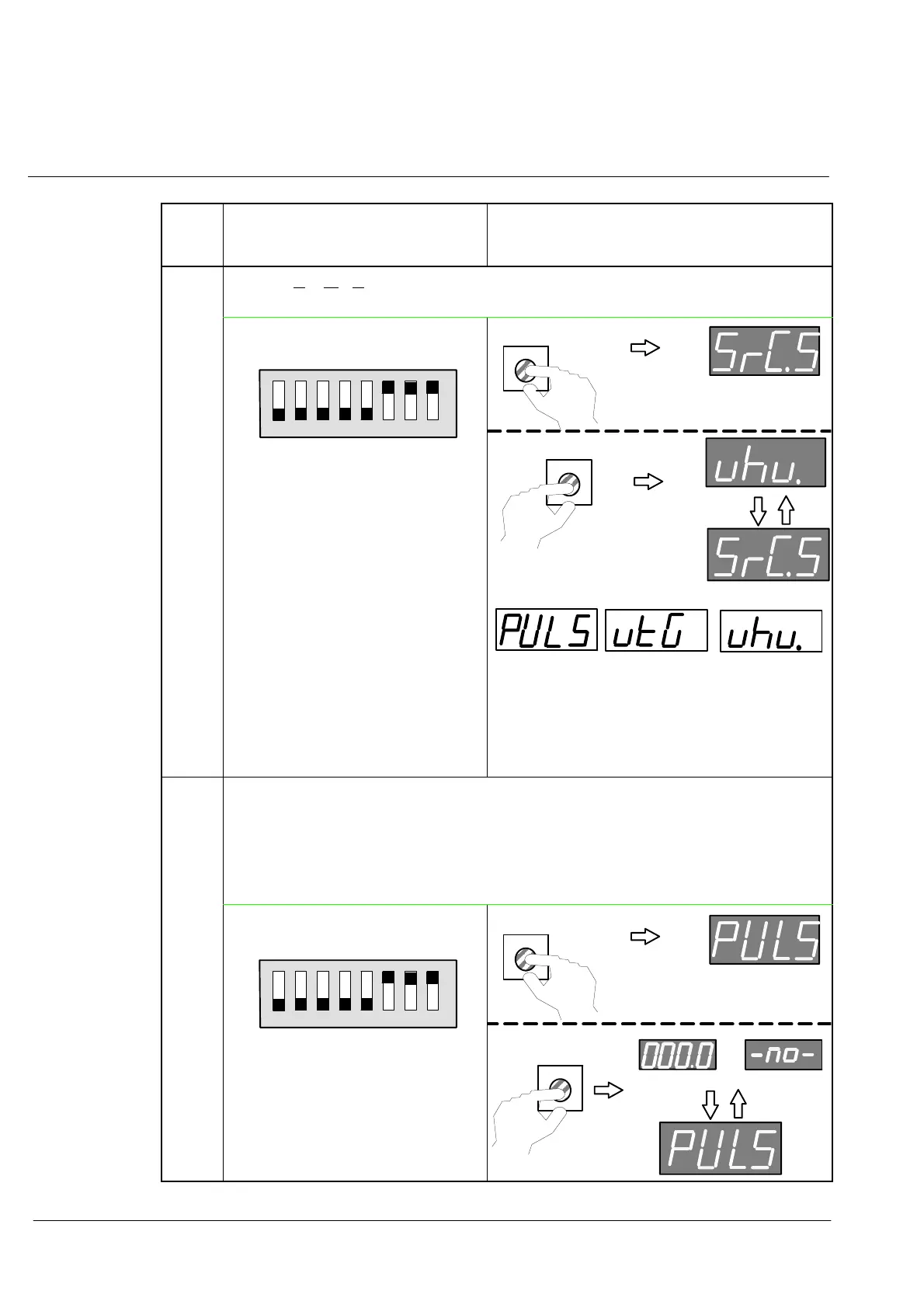

11 SrC.S = SourceSpeed Information.
Data about the source providing the speed value.
12345678
OPEN
Switch B37 (DIP switch)
B39
10x
B38
Display options:
PULS = Pulse Log
vTg = Speed over ground
vhW = Speed trough water
(vTg and vhW corresponds to
NMEA 0183)
12 PULS = Speed value from Pulse Log.
Indicated in Kts.
Displays --no-- if no Pulse Log selected or connected.
Displays 0000 if there is no input from selected source.
Display range –80 Kts to +80 Kts (astern and ahead)
12345678
OPEN
Switch B37 (DIP switch)
B39
11x
B38
or
