Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
167
Edition: July 1, 2005 3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications

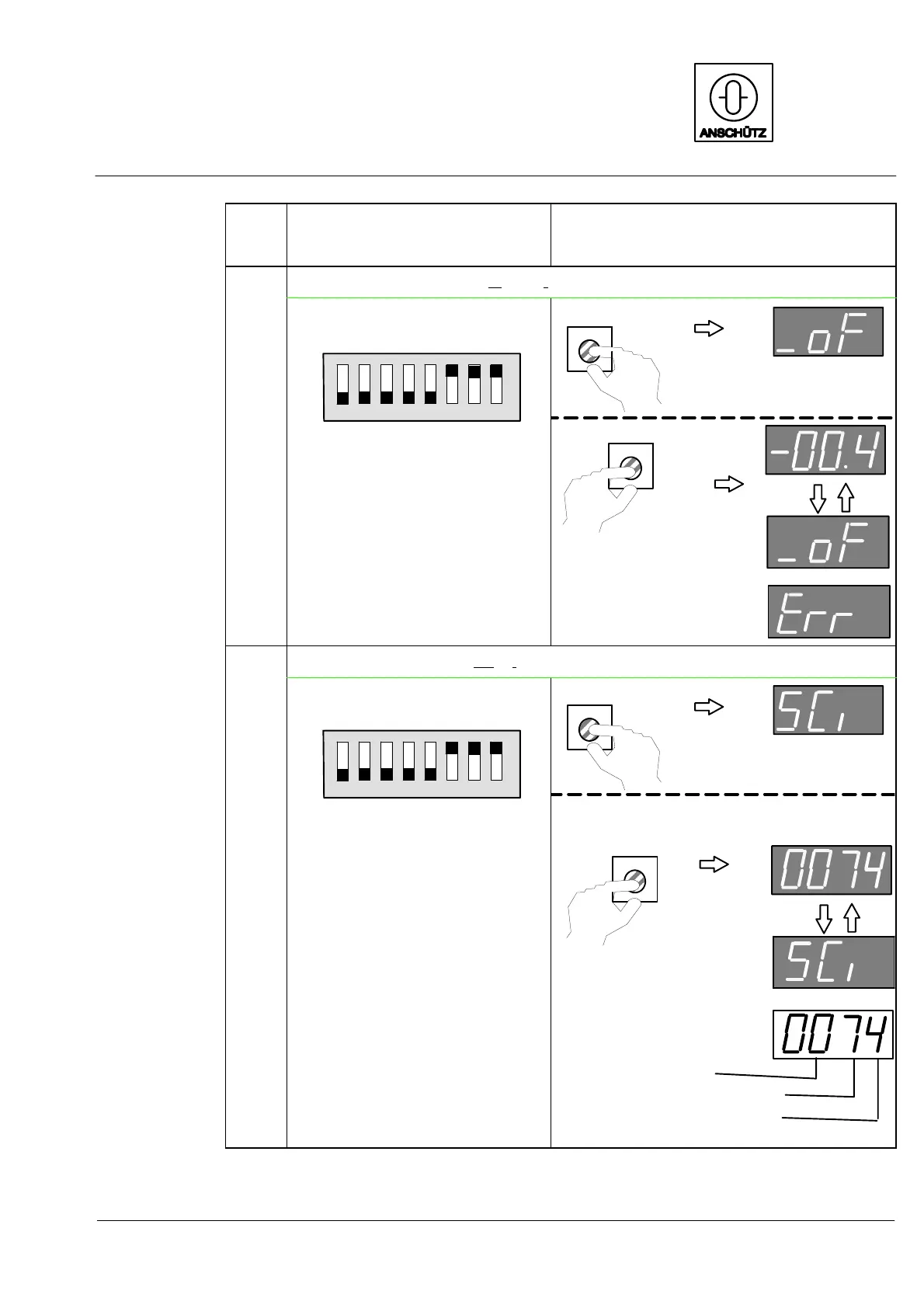

9 _oF = Acceleration Error (Oelrestfehler ) (no speed error components).
12345678
OPEN
Switch B37 (DIP switch)
B39
8x
B38
The automatic Speed Error
Correction function is defective.
Speed or/and position faulty.
10 Sci = Serial Interface (Schnittstelle), telegram traffic on serial interface.
12345678
OPEN
Switch B37 (DIP switch)
B39
9x
B38
Contents
alternate
Digit 2: NMEA interface
(Speed in)
Digit 1: GPS--reciver interface
Digit 0: Sum of all telegrams
on both interfaces
