Installation and Service manual
Compass STD 22
Compass STD 22 Compact
166
Edition: July 1, 2005
3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications

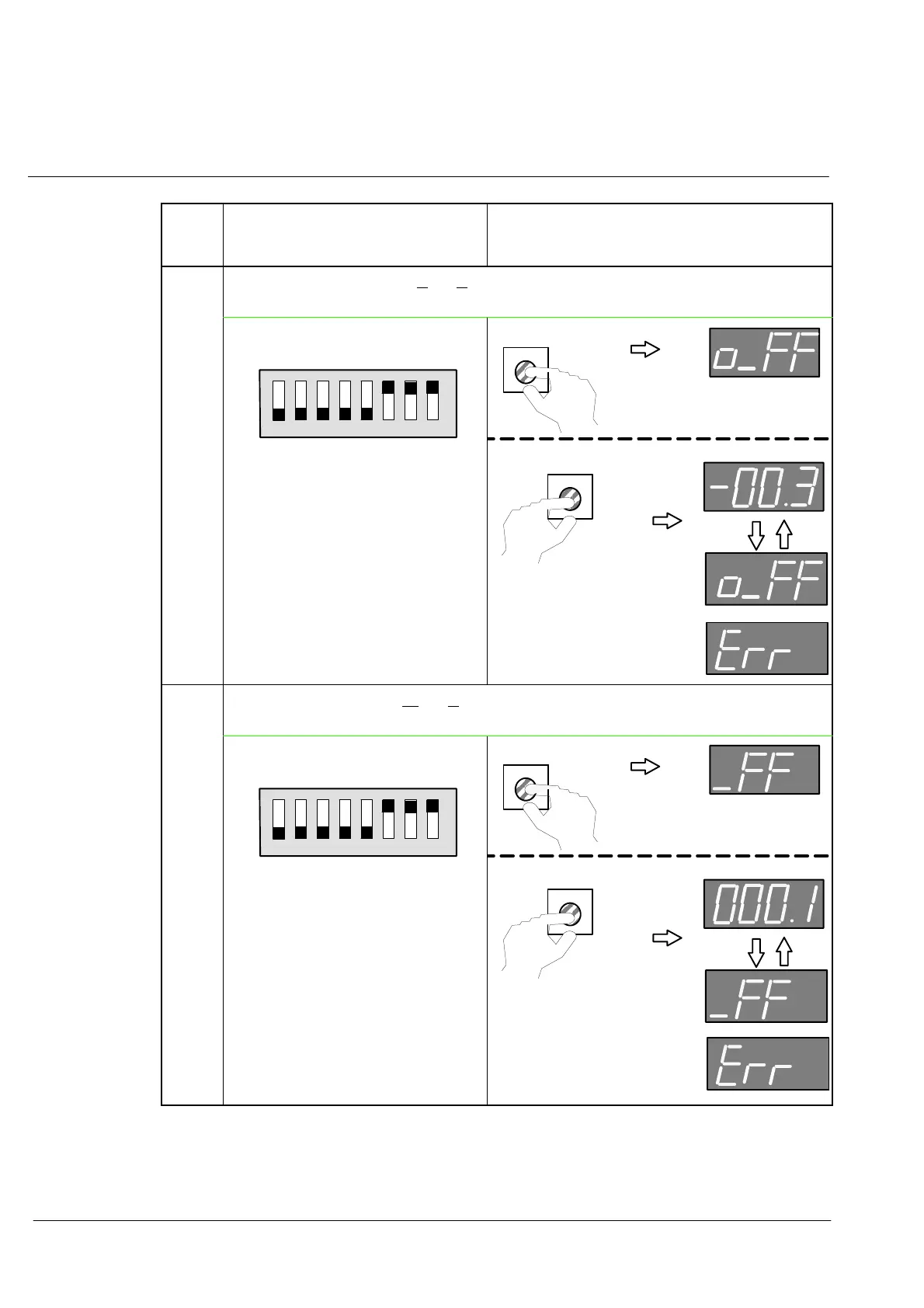

7 o_FF = Speed Error (FahrtFehler) + acceleration error.
Indicated in degrees.
12345678
OPEN
Switch B37 (DIP switch)
B39
6x
B38
The automatic Speed Error
Correction function is defective.
Speed or/and position faulty.
8 _FF = Speed Error (FahrtFehler) without acceleration error.
Indicated in degrees.
12345678
OPEN
Switch B37 (DIP switch)
B38
7x
B39
The automatic Speed Error
Correction function is defective.
Speed or/and position faulty.
