Installation and Service manual
Compass STD 22
Compass STD 22 Compact
172
Edition: July 1, 2005
3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications

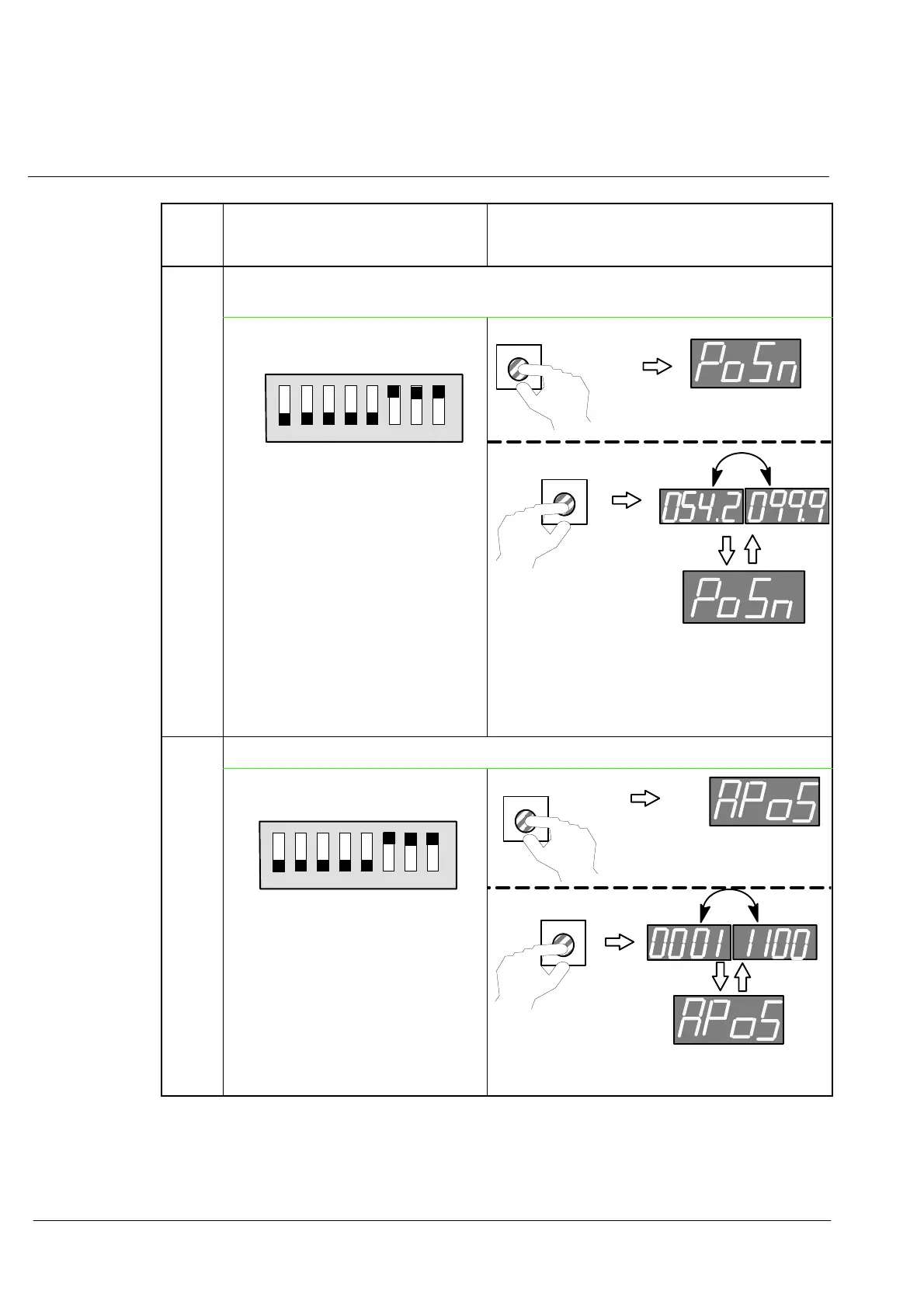

19 PoSn = Latitude value derived from automatic latitude input.
Indicated in degrees.
12345678
OPEN
Switch B37 (DIP switch)
B39
18x
B38
If the display changes value (similar
as shown), there i s a data transfer on
this interface. No change (constant
099.9) means there i s no data
transfer
20 APoS = Alarm position input
12345678
OPEN
Switch B37 (DIP switch)
B39
19x
B38
0001 = no position (alarm)
1100 = positon o.k.
