Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
Compass STD 22 Compact
12
Edition: Feb. 17, 2006
3646/110 --233.DOC010302
24VDC
18--36 V.d.c.
AC/DC converter
121--062
Option:
or
Distribution Unit
138--118
Compass
STD 22
110 --233
Operator Unit
130--613
CAN bus
8x Heading (12x) (course bus or NMEA)
3x Step
1x rate of turn
1x RS232 for printer

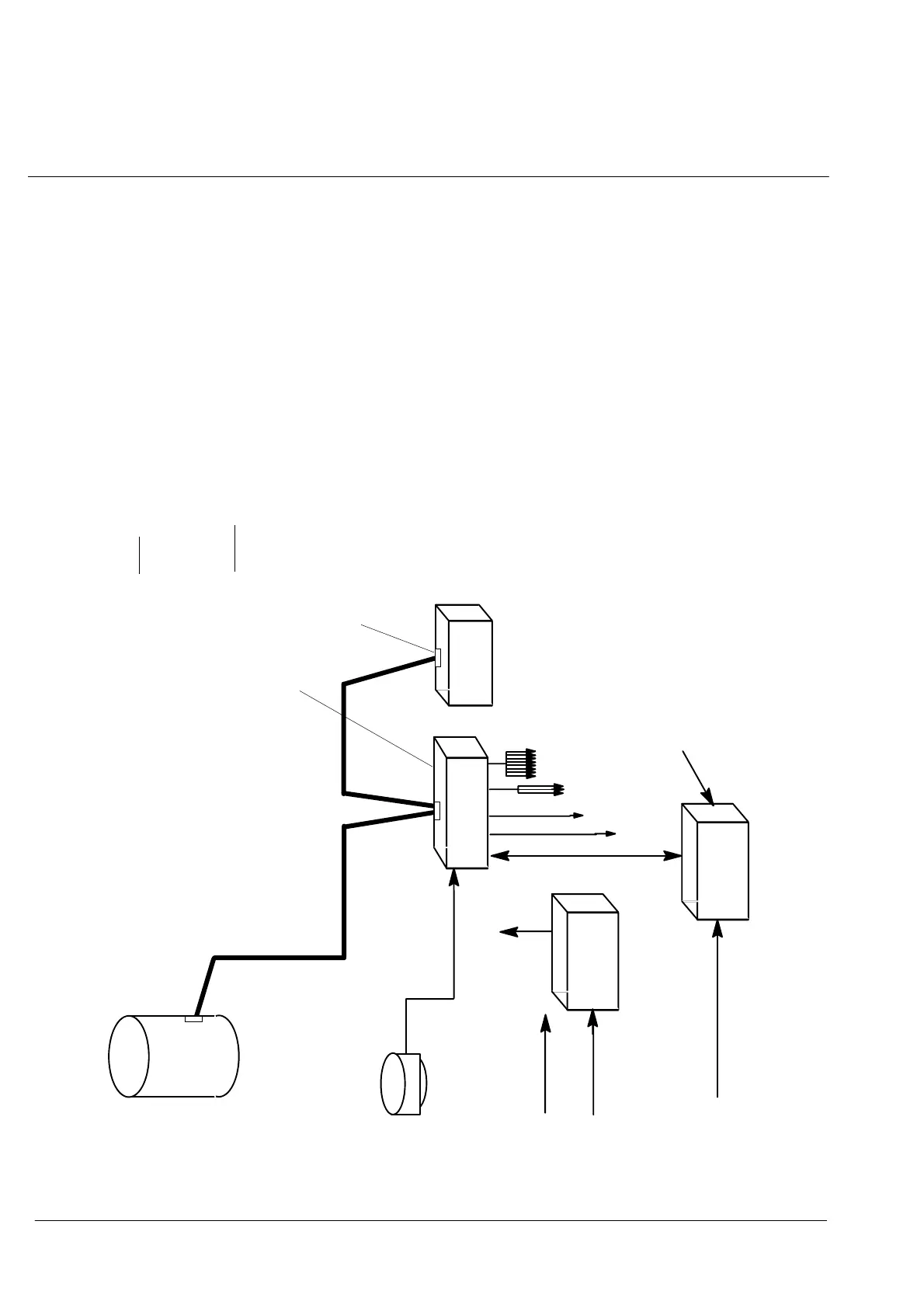

STD 22 GM Gyro Compass System
*
*(GM = Gyro/Magnet)
see manual no.: 3648
see manual no.: 3647
Inputs:
-- NMEA Speed -- NMEA Position -- Pulse Log -- Pulse Log Direction -- DV--bus
NMEA Position NMEA Speed Pulse Log Direction Pulse Log
Outputs:
Distribution Unit:
-- 8x Heading RMG course bus or NMEA -- 3x Step (6 steps/degree), 24/35VDC, max. 10W -- 1x RS232 serial interface for printer -- 1x rate of turn +/-- 10V for 30/100/300 degrees/min -- 12x Status (potential free) -- D V -- b u s
Magnetic sonde
CAN bus
CAN bus
115--230VAC 50/60Hz
108--010
*
*The number of necessary
AC/DC converters depends on the neces- sary max. power of all supplied devices
Example for a DV--bus application
!Not for Gyro/Gyro/Magnet--Redundant!
For Example: Nautoconning
Speed and/or Position connections have to be made at the Nautoconning (for example) in a DV--bus application
