RDL-3000 User Manual
70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 23 of 142 November 25, 2010
3.2 PMP Mode
The RDL-3000 can operate as a VLAN-aware wireless L2 switch, with traffic being
classified and processed based on the packet VLAN ID. The RDL-3000 also provides a
Pass through mode that can be used to process traffic that is not matched to a known
VID, or simply to forward all traffic received on a port.
The deployed RDL-3000 wireless network provides features of a standard wireless L2
bridge (pass-through mode) and a VLAN-aware wireless L2 switch (tagged mode).
These features and other system capabilities are explained in the following sections.
3.2.1 Subscriber Links
Subscriber Links define the characteristics of the wireless interfaces between the sector
controller and subscribers. Each link is uniquely identified with a name and MAC
address. The uplink and downlink uncoded burst rates (UBR) can be set individually for
each link in the sector.

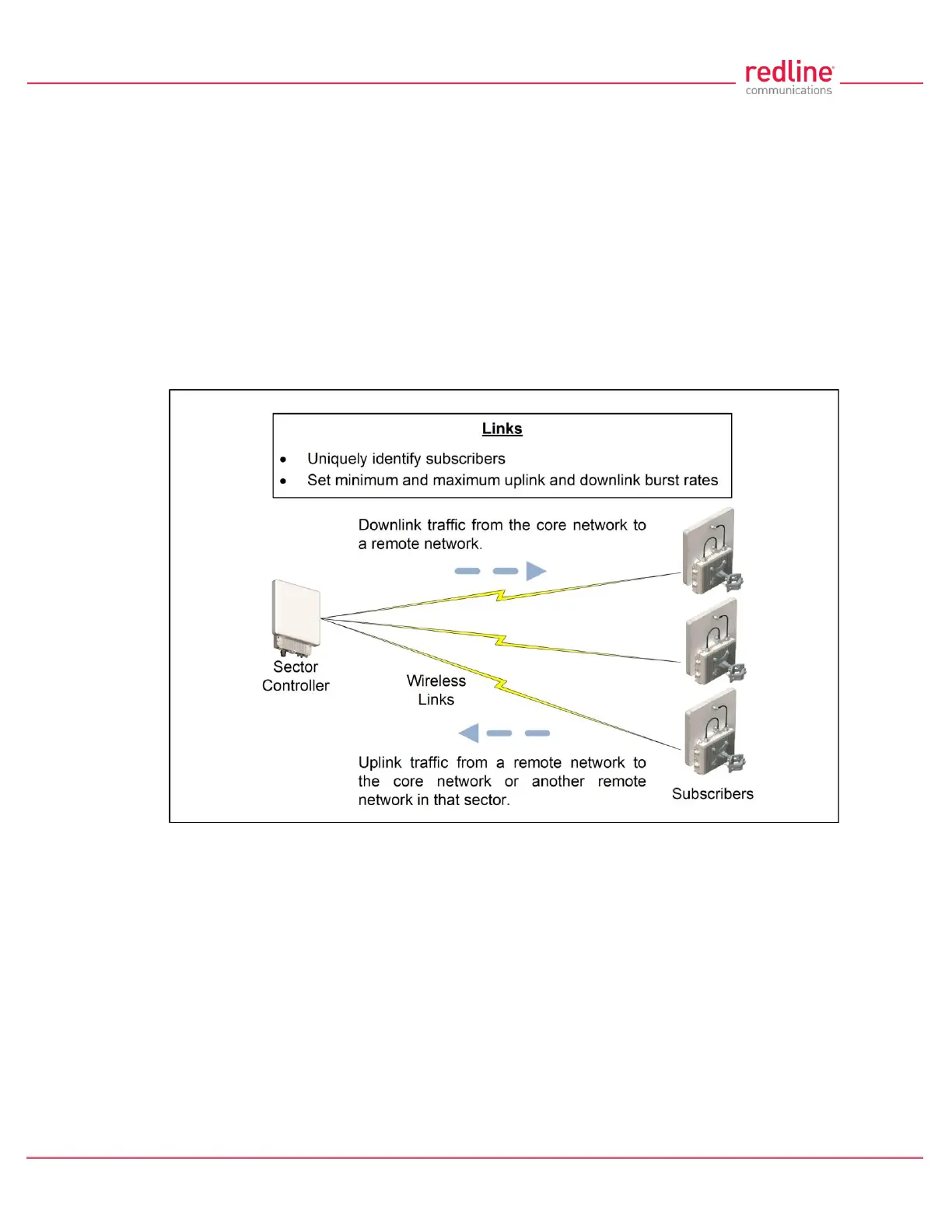

Fig. 8: PMP - Wireless Subscriber Links
