3.2.5 Subscriber-to-Subscriber Traffic
SS to SS traffic is any packet received on a subscriber Ethernet port that is addressed to
a host on another subscriber in the same sector. Unicast traffic is forwarded to the sector
controller and then retransmitted (unmodified) over the wireless interface to the
destination subscriber. Broadcast and multicast traffic is forwarded to the sector
controller and processed by the parent Service Group of the originating Service.

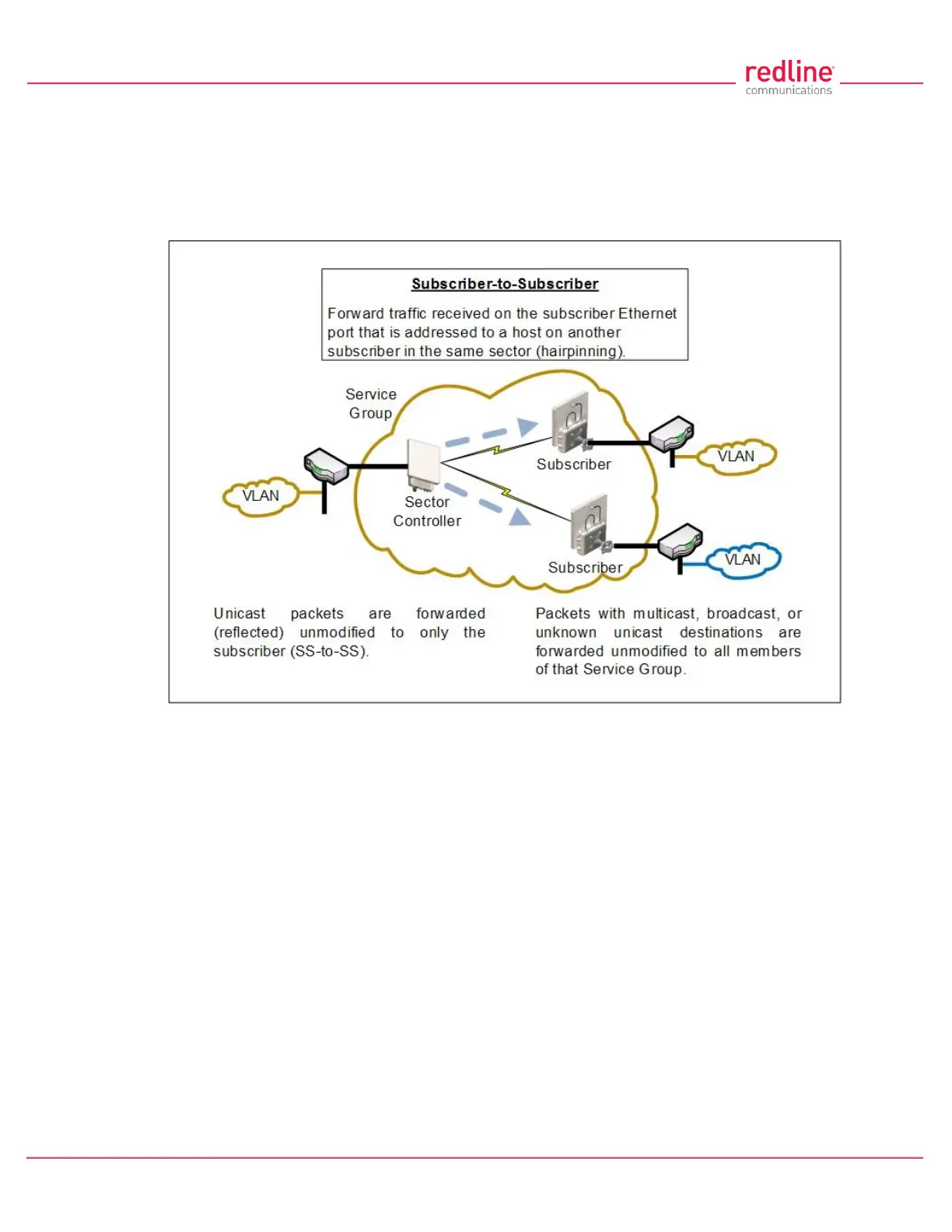

Fig. 14: PMP - Subscriber-to-Subscriber Unicast Traffic
Notes:
1. SS to SS broadcast and multicast traffic may optionally be blocked.
