3.2.2 Services and Service Groups
The RDL-3000 can operate as a VLAN-aware wireless L2 switch, with traffic being
classified and processed based on the packet VLAN ID. The RDL-3000 also provides a
Pass through mode that can be used to process traffic that is not matched to a known
VID, or simply to forward all traffic received on a port.
The following table lists the two methods to classify and process traffic received at the
RDL-3000 Ethernet port.
Table 2: Web - Operation - Traffic Classification
Type
Function
Settings
Service
Classify and process traffic received
and transmitted over the subscriber
Ethernet port.
Tagging Mode (VLAN/Pass through)
VLAN ID (tag)
Default Priority
Service
Group
Classify and process traffic received
and transmitted over the sector
controller Ethernet port.
Tagging Mode (VLAN/Pass through)
VLAN ID (tag)
Default Priority

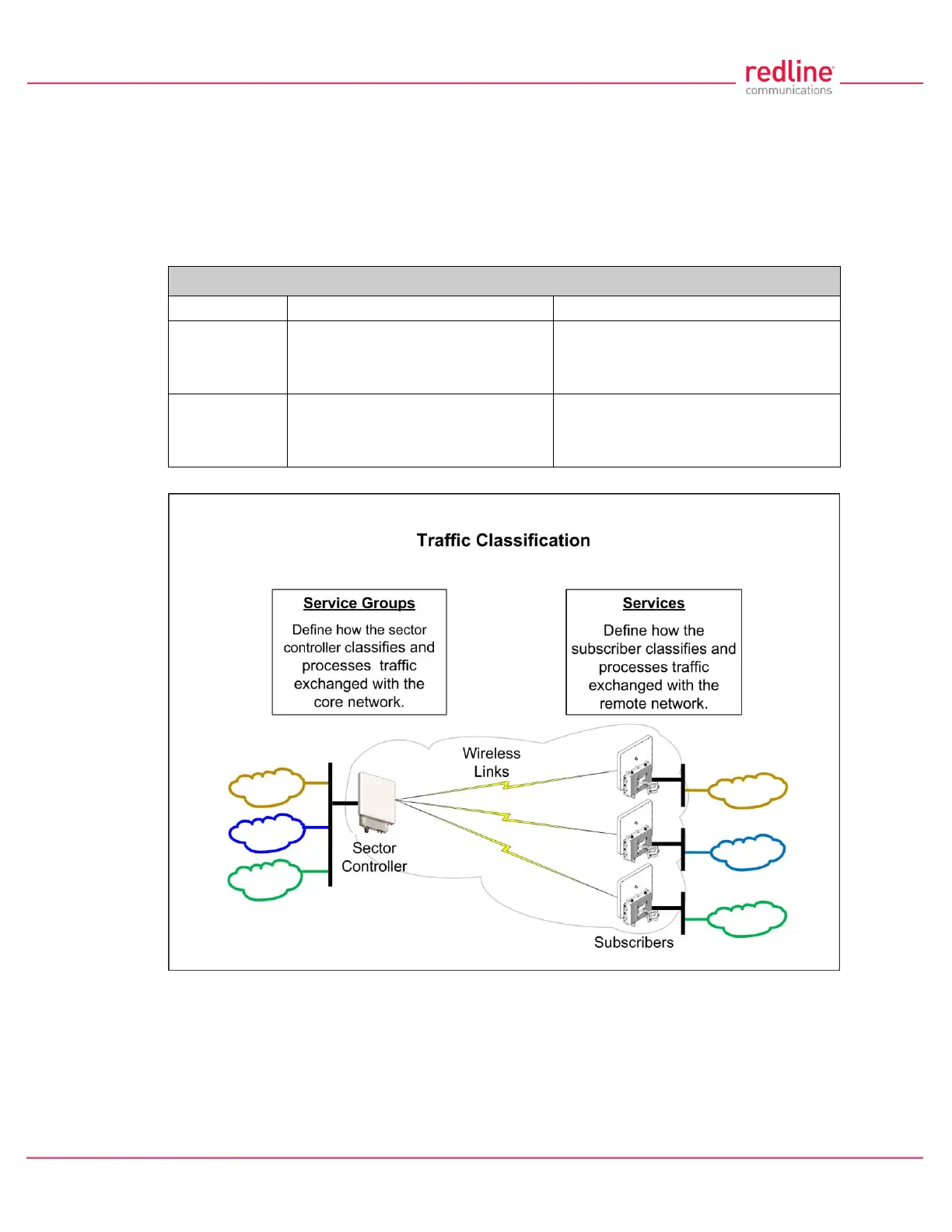

Fig. 9: PMP - Services and Service Groups
See the following sections for additional information about Service Groups and Services.
